TECHNICAL INFORMATION

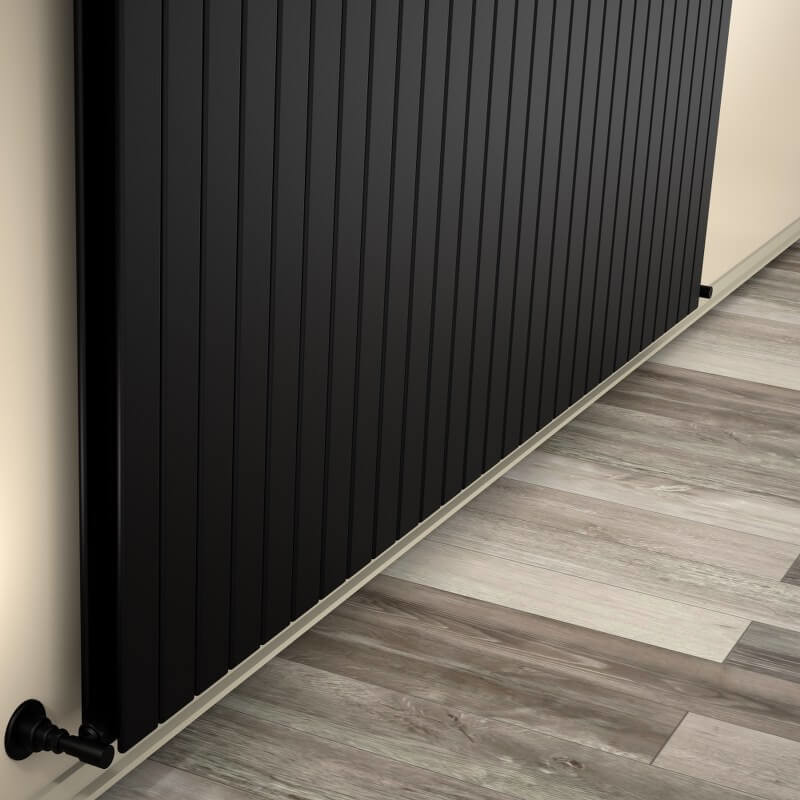

• Model = 20V
• Material =Steel
• Height=900 mm
• Width=2068 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=28 Pieces
• Total Number of Profiles (Front + Back)=28+28 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=29 lt
• Weight=84,3 kg
• Boxed Weight=90,19 kg
• Box Size=211x95x9,6 cmTAPPING OPTIONS
• Standard Entry1 =2158 mm
• Standard Entry2 =850 mm
• Standard Entry Cross =2158 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 2754 Kcal/h
• Heat Output 90/70-20° ?t=60°C=3471Kcal/h
• Heat Output 55/45-20° ?t=30°C=1411 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=3202 Watt
• Heat Output 90/70-20°?t=60°C=4035 Watt
• Heat Output 55/45-20°?t=30°C=1640 Watt
Btu
• Heat Output 75/65-20°?t=50°C=10926 Btu
• Heat Output 90/70-20°?t=60°C=13767 Btu
• Heat Output 55/45-20°?t=30°C=5595 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 900x2068 White ∆t50°C=2754 Kcal/h | ∆t60°C= 3472 Kcal/h | 28 Pipes | Heats 18-53 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 900x2068 Anthracite ∆t50°C=2754 Kcal/h | ∆t60°C= 3472 Kcal/h | 28 Pipes | Heats 18-53 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 900x2068 Matte Black ∆t50°C=2754 Kcal/h | ∆t60°C= 3472 Kcal/h | 28 Pipes | Heats 18-53 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 900x2068 Wood Effect ∆t50°C=2754 Kcal/h | ∆t60°C= 3472 Kcal/h | 28 Pipes | Heats 18-53 m2
