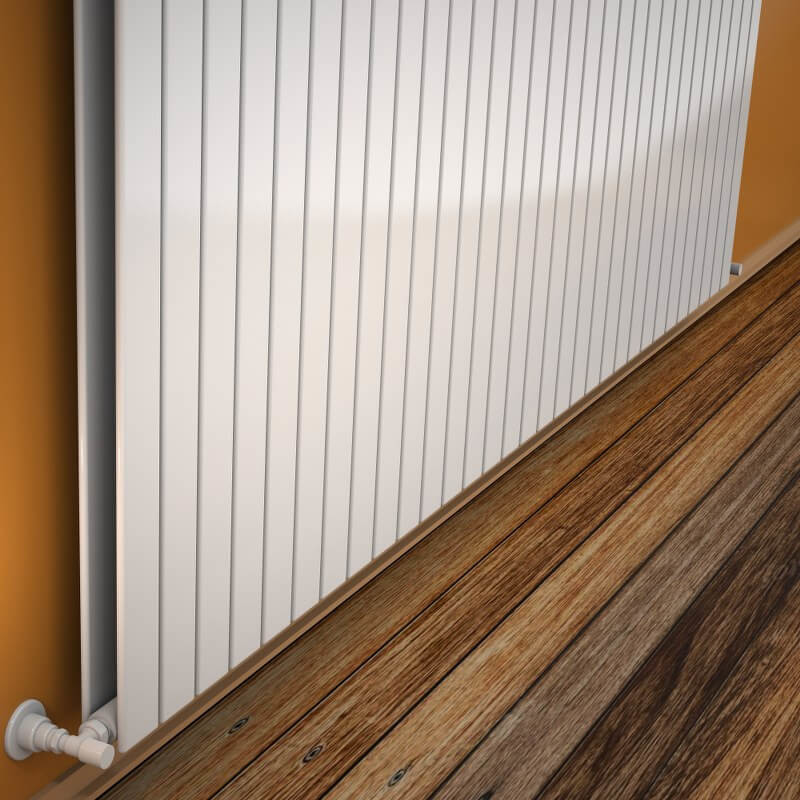

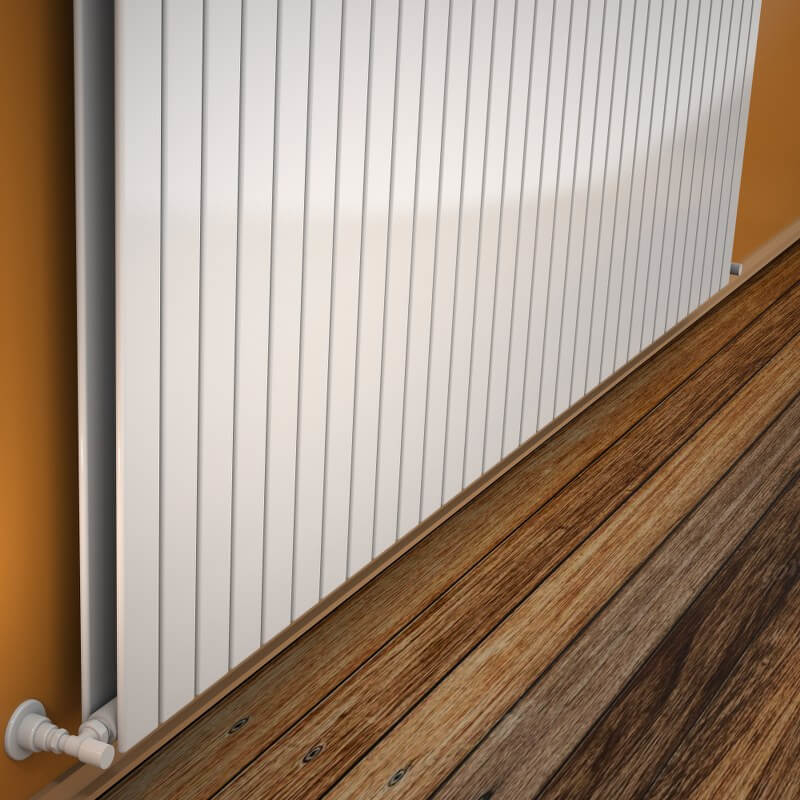

Type 20V Decorative Radiator 900x2290 White

Name: Type 20V Decorative Radiator 900x2290 White
SKU: 220V09002290B1PS
Price: 49344.24 TRY
Availability: InStock

Product Code : 220V09002290B1PS

Guarantee : 10 Year

TAXES Included

Price

89,716.80 TL

Discounted Price

49,344.24 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=900 mm

• Width=2290 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=31 Pieces

• Total Number of Profiles (Front + Back)=31+31 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=32,1 lt

• Weight=93,3 kg

• Boxed Weight=99,79 kg

• Box Size=233x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2380 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =2380 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 3050 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3843Kcal/h

• Heat Output 55/45-20° ?t=30°C=1562 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=3546 Watt

• Heat Output 90/70-20°?t=60°C=4468 Watt

• Heat Output 55/45-20°?t=30°C=1816 Watt

Btu

• Heat Output 75/65-20°?t=50°C=12099 Btu

• Heat Output 90/70-20°?t=60°C=15245 Btu

• Heat Output 55/45-20°?t=30°C=6195 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
