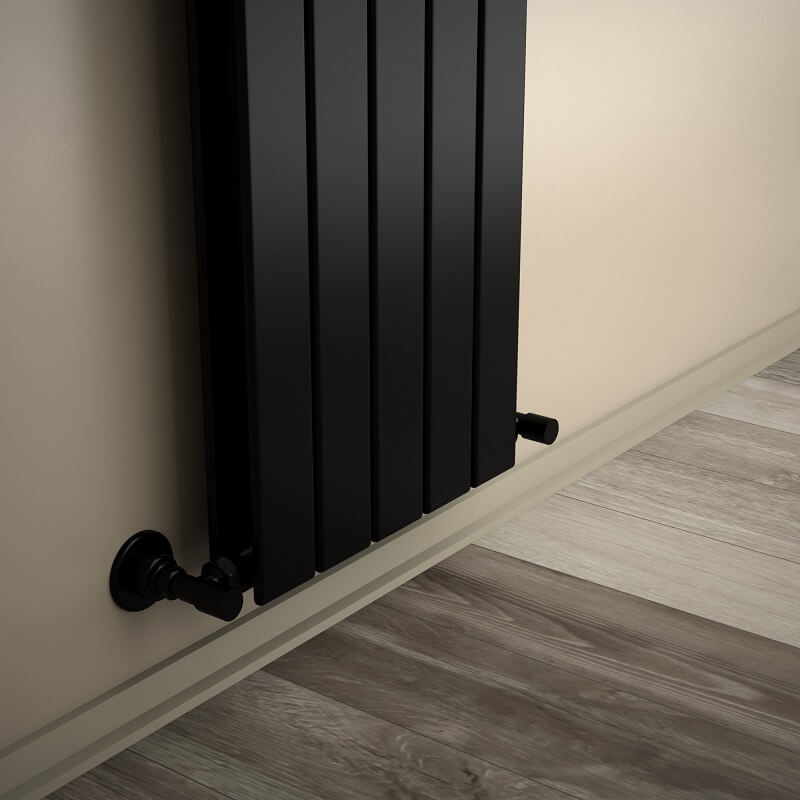

TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=900 mm
• Width=366 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=5 Pieces
• Total Number of Profiles (Front + Back)=5+5 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=5,2 lt
• Weight=15,1 kg
• Boxed Weight=16,39 kg
• Box Size=41x95x9,6 cmTAPPING OPTIONS
• Standard Entry1 =456 mm
• Standard Entry2 =850 mm
• Standard Entry Cross =456 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 492 Kcal/h
• Heat Output 90/70-20° ?t=60°C=620Kcal/h
• Heat Output 55/45-20° ?t=30°C=252 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=572 Watt
• Heat Output 90/70-20°?t=60°C=721 Watt
• Heat Output 55/45-20°?t=30°C=293 Watt
Btu
• Heat Output 75/65-20°?t=50°C=1952 Btu
• Heat Output 90/70-20°?t=60°C=2460 Btu
• Heat Output 55/45-20°?t=30°C=1000 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

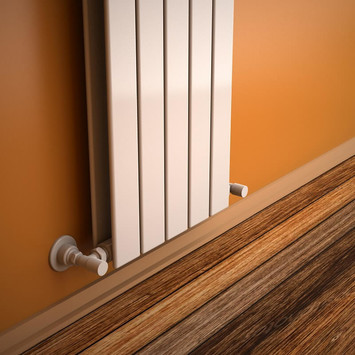

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 900x366 White ∆t50°C=492 Kcal/h | ∆t60°C= 620 Kcal/h | 5 Pipes | Heats 4-10 m2
-

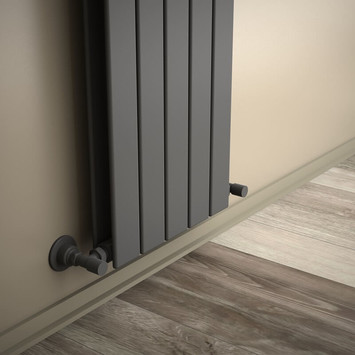

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 900x366 Anthracite ∆t50°C=492 Kcal/h | ∆t60°C= 620 Kcal/h | 5 Pipes | Heats 4-10 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 900x366 Matte Black ∆t50°C=492 Kcal/h | ∆t60°C= 620 Kcal/h | 5 Pipes | Heats 4-10 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 900x366 Wood Effect ∆t50°C=492 Kcal/h | ∆t60°C= 620 Kcal/h | 5 Pipes | Heats 4-10 m2
