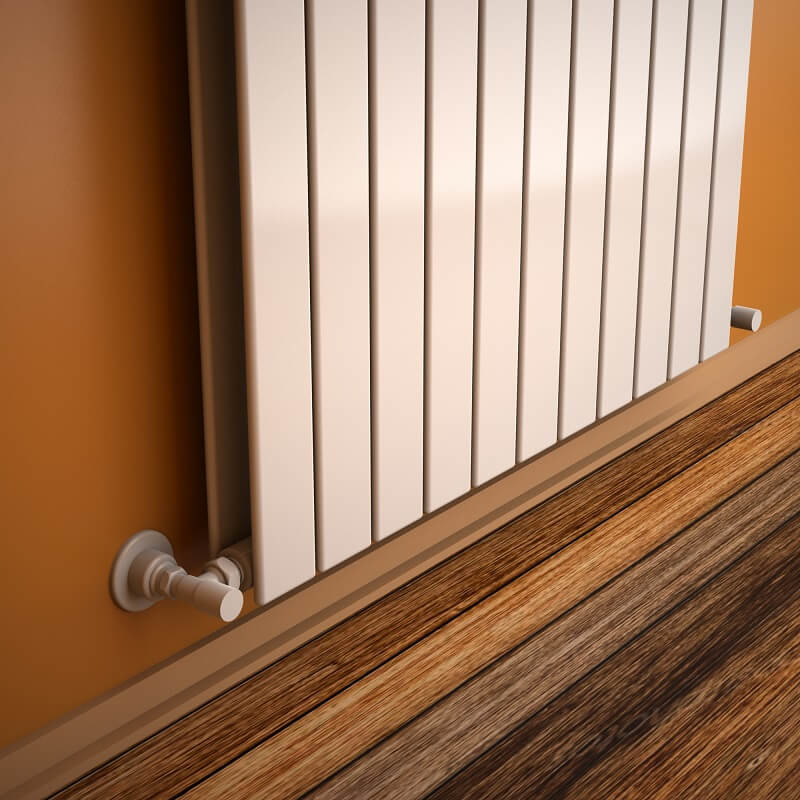

Type 20V Decorative Radiator 900x810 White

Name: Type 20V Decorative Radiator 900x810 White
SKU: 220V09000810B1PS
Price: 19146.60 TRY
Availability: InStock

Product Code : 220V09000810B1PS

Guarantee : 10 Year

TAXES Included

Price

34,812.00 TL

Discounted Price

19,146.60 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=900 mm

• Width=810 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=11 Pieces

• Total Number of Profiles (Front + Back)=11+11 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,4 lt

• Weight=33,2 kg

• Boxed Weight=35,69 kg

• Box Size=85x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =900 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =900 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1082 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1364Kcal/h

• Heat Output 55/45-20° ?t=30°C=554 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1258 Watt

• Heat Output 90/70-20°?t=60°C=1586 Watt

• Heat Output 55/45-20°?t=30°C=645 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4293 Btu

• Heat Output 90/70-20°?t=60°C=5410 Btu

• Heat Output 55/45-20°?t=30°C=2199 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
