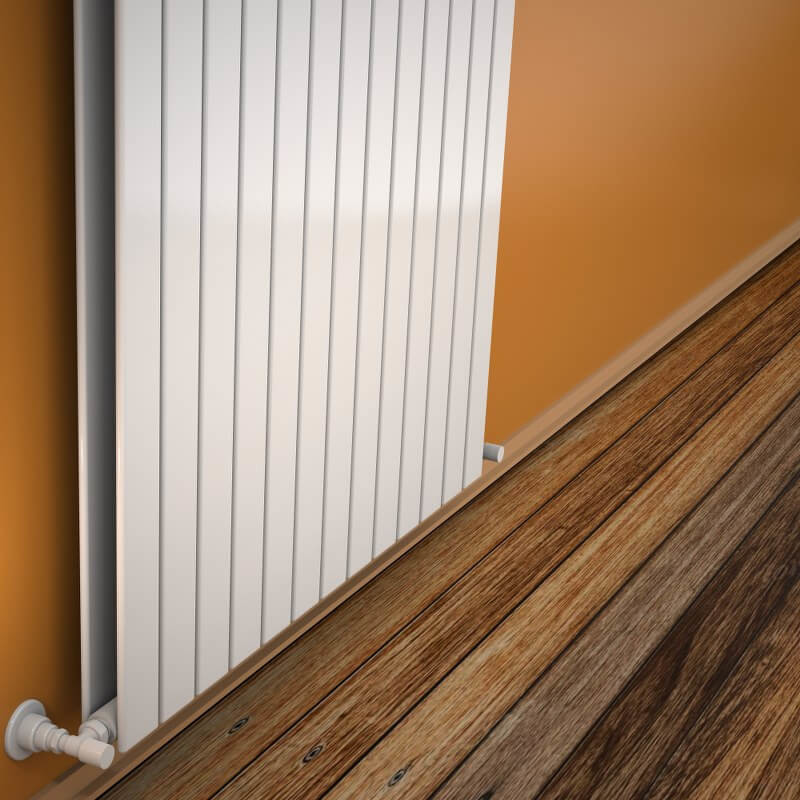

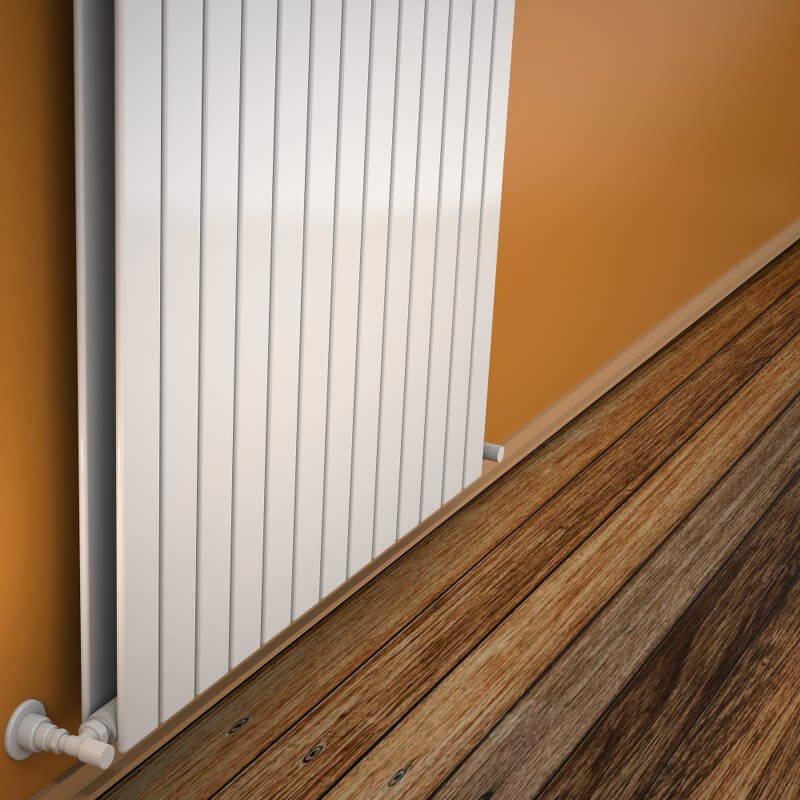

Type 20V Decorative Radiator 900x958 White

Product Code : 220V09000958B1PS
Guarantee : 10 Year
TAXES Included
Price
:
40,269.60 TL
Discounted Price
:
22,148.28 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
24.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =900 mm

    • Width=958 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=13 Pieces

    • Total Number of Profiles (Front + Back)=13+13 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=13,4 lt

    • Weight=39,2 kg

    • Boxed Weight    =42,09 kg

    • Box Size=100x95x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1048 mm

    • Standard Entry2 =850 mm

    • Standard Entry Cross =1048 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1279 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1612Kcal/h

    • Heat Output 55/45-20° ?t=30°C=655 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1487 Watt

    • Heat Output 90/70-20°?t=60°C=1874 Watt

    • Heat Output 55/45-20°?t=30°C=762 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5074 Btu

    • Heat Output 90/70-20°?t=60°C=6394 Btu

    • Heat Output 55/45-20°?t=30°C=2598 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
