TECHNICAL INFORMATION

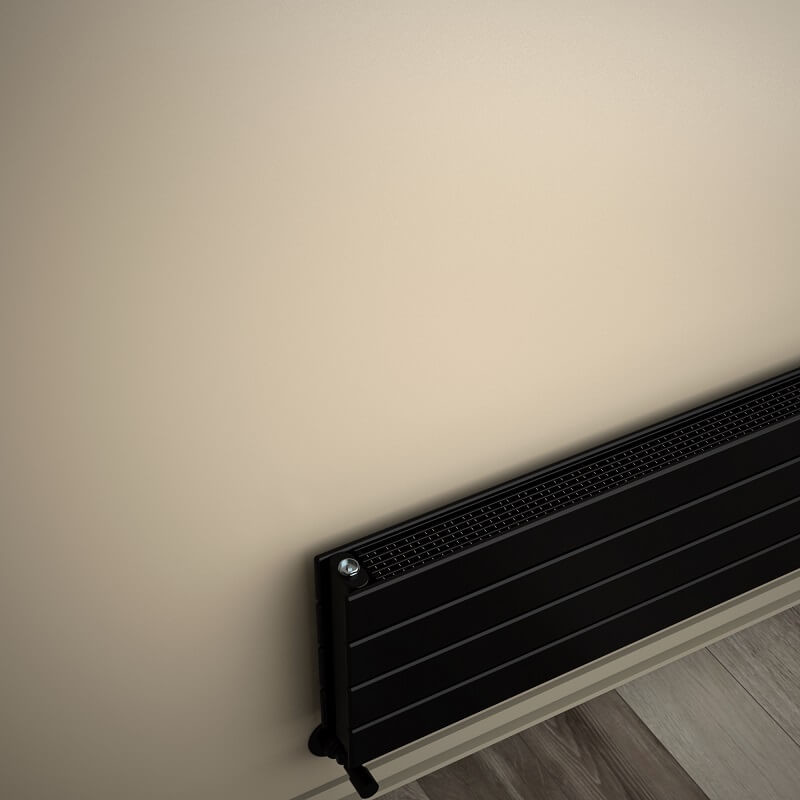

• Model = 21H
• Material =Steel
• Height=292 mm
• Width=1700 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+4 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=30x60 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=80 mm
• Wall to Center of Inlet=75 mm
• Wall Projection Distance=115 mm
• Radiator Thread Dimension=1/2"
• Water Volume=8,2 lt
• Weight=27,8 kg
• Boxed Weight=29,59 kg
• Box Size=35x176x11,6 cmTAPPING OPTIONS
• Standard Entry=1650 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1790mm
• Cross Up-Right / Down-Left=1790mm
• Cross Up-Left / Down-Right=1790mm
• Side - Right=250mm
• Side - Left=250mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1169 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1473Kcal/h
• Heat Output 55/45-20° ?t=30°C=599Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1359 Watt
• Heat Output 90/70-20°?t=60°C=1713 Watt
• Heat Output 55/45-20°?t=30°C=696 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4637 Btu
• Heat Output 90/70-20°?t=60°C=5843 Btu
• Heat Output 55/45-20°?t=30°C=2375 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-
%45 DiscountAKS SeçenekleriType 21H Decorative Radiator 292x1700 White ∆t50°C=1169 Kcal/h | ∆t60°C= 1474 Kcal/h | 4 Pipes | Heats 8-23 m2
-
%45 DiscountAKS SeçenekleriType 21H Decorative Radiator 292x1700 Anthracite ∆t50°C=1169 Kcal/h | ∆t60°C= 1474 Kcal/h | 4 Pipes | Heats 8-23 m2
-
%45 DiscountAKS SeçenekleriType 21H Decorative Radiator 292x1700 Matte Black ∆t50°C=1169 Kcal/h | ∆t60°C= 1474 Kcal/h | 4 Pipes | Heats 8-23 m2
-
%45 DiscountAKS SeçenekleriType 21H Decorative Radiator 292x1700 Wood Effect ∆t50°C=1169 Kcal/h | ∆t60°C= 1474 Kcal/h | 4 Pipes | Heats 8-23 m2
