TECHNICAL INFORMATION

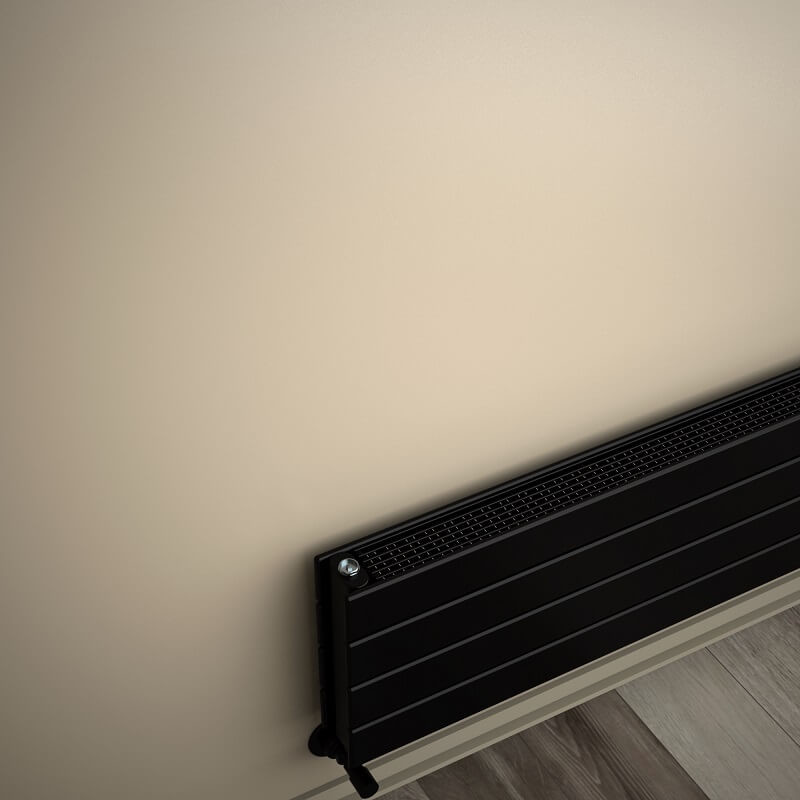

• Model = 21H
• Material =Steel
• Height=292 mm
• Width=600 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+4 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=30x60 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=80 mm
• Wall to Center of Inlet=75 mm
• Wall Projection Distance=115 mm
• Radiator Thread Dimension=1/2"
• Water Volume=3,4 lt
• Weight=10,3 kg
• Boxed Weight=11,13 kg
• Box Size=35x66x11,6 cmTAPPING OPTIONS
• Standard Entry=550 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=690mm
• Cross Up-Right / Down-Left=690mm
• Cross Up-Left / Down-Right=690mm
• Side - Right=250mm
• Side - Left=250mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 413 Kcal/h
• Heat Output 90/70-20° ?t=60°C=521Kcal/h
• Heat Output 55/45-20° ?t=30°C=212Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=480 Watt
• Heat Output 90/70-20°?t=60°C=605 Watt
• Heat Output 55/45-20°?t=30°C=246 Watt
Btu
• Heat Output 75/65-20°?t=50°C=1638 Btu
• Heat Output 90/70-20°?t=60°C=2064 Btu
• Heat Output 55/45-20°?t=30°C=839 Btu
Warranty:10 YearsDelivery Information:21 Day
