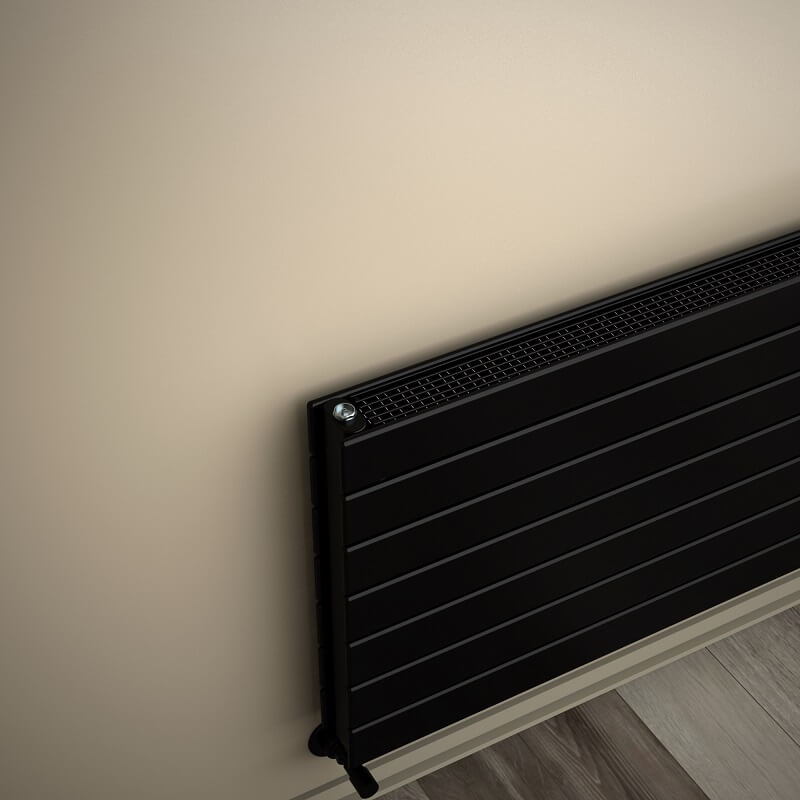

Type 21H Decorative Radiator 514x1200 Matte Black

Name: Type 21H Decorative Radiator 514x1200 Matte Black
SKU: 221H05141200B3MS
Price: 26093.10 TRY
Availability: InStock

Product Code : 221H05141200B3MS

Guarantee : 10 Year

TAXES Included

Price

47,442.00 TL

Discounted Price

26,093.10 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7911","59_0":"10656","58_0":"13401","57_0":"16146","56_0":"17406","55_0":"18666","54_0":"19926","53_0":"21261","52_0":"21597"},"variant_prices":{"60_0":21744.25,"59_0":22624.25,"58_0":22624.25,"57_0":22624.25,"56_0":22624.25,"55_0":22624.25,"54_0":22624.25,"53_0":22624.25,"52_0":22624.25},"variant_price_raws":{"60_0":21744.25,"59_0":22624.25,"58_0":22624.25,"57_0":22624.25,"56_0":22624.25,"55_0":22624.25,"54_0":22624.25,"53_0":22624.25,"52_0":22624.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"39535","59_0":"41135","58_0":"41135","57_0":"41135","56_0":"41135","55_0":"41135","54_0":"41135","53_0":"41135","52_0":"41135"},"variant_supplier_codes":{"60_0":"221H05141200B3MS","59_0":"221H05141200B3MM2","58_0":"221H05141200B3MM3","57_0":"221H05141200B3MM1","56_0":"221H05141200B3MY0","55_0":"221H05141200B3MC1","54_0":"221H05141200B3MC2","53_0":"221H05141200B3MR2","52_0":"221H05141200B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=514 mm

• Width=1200 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=10,5 lt

• Weight=34,7 kg

• Boxed Weight=36,86 kg

• Box Size=57x126x11,6 cm

TAPPING OPTIONS

• Standard Entry=1150 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1290mm

• Cross Up-Right / Down-Left=1290mm

• Cross Up-Left / Down-Right=1290mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1244 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1568Kcal/h

• Heat Output 55/45-20° ?t=30°C=637Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1446 Watt

• Heat Output 90/70-20°?t=60°C=1822 Watt

• Heat Output 55/45-20°?t=30°C=741 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4934 Btu

• Heat Output 90/70-20°?t=60°C=6217 Btu

• Heat Output 55/45-20°?t=30°C=2527 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
