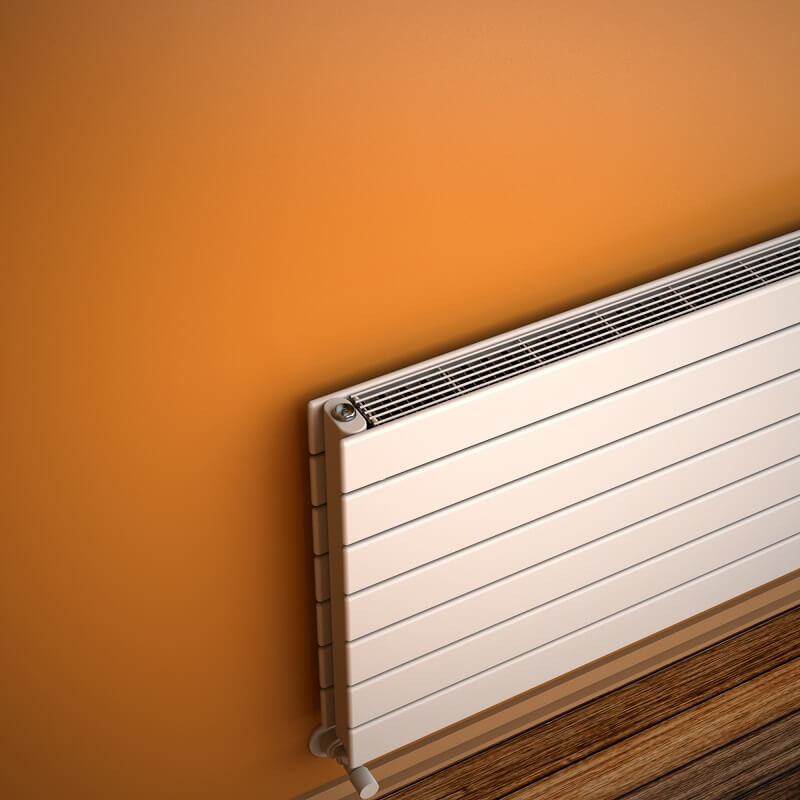

Type 21H Decorative Radiator 514x1400 White

Product Code : 221H05141400B1PS
Guarantee : 10 Year
TAXES Included
Price
:
42,667.20 TL
Discounted Price
:
23,466.96 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Right 50mm Bottom Right 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Middle 50mm Bottom Middle 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-45cm Entry Right Side-45cm Entry Right

Side-45cm Entry Left Side-45cm Entry Left

Choose Quantity
Planned Delivery
:
23.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 21H

    • Material =Steel

    • Height    =514 mm

    • Width=1400 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=7 Pieces

    • Total Number of Profiles (Front + Back)=7+7 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=30x60 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=80 mm

    • Wall to Center of Inlet=75 mm

    • Wall Projection Distance=115 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=12,1 lt

    • Weight=40,2 kg

    • Boxed Weight    =42,66 kg

    • Box Size=57x146x11,6 cm


    TAPPING OPTIONS




    • Standard Entry=1350 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=1490mm

    • Cross Up-Right / Down-Left=1490mm

    • Cross Up-Left / Down-Right=1490mm

    • Side - Right=450mm

    • Side - Left=450mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1450 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1827Kcal/h

    • Heat Output 55/45-20° ?t=30°C=743Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1686 Watt

    • Heat Output 90/70-20°?t=60°C=2125 Watt

    • Heat Output 55/45-20°?t=30°C=864 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5753 Btu

    • Heat Output 90/70-20°?t=60°C=7249 Btu

    • Heat Output 55/45-20°?t=30°C=2946 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 21H Decorative Radiator 514x1400 White
    AKS Seçenekleri
    Type 21H Decorative Radiator 514x1400 White ∆t50°C=1450 Kcal/h | ∆t60°C= 1828 Kcal/h | 7 Pipes | Heats 10-28 m2
    42,667.20 TL
    23,466.96 TL

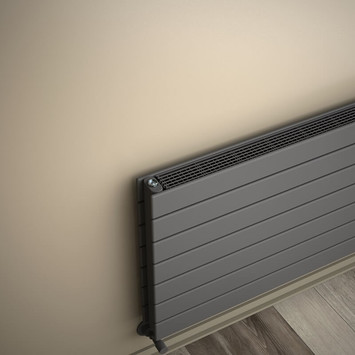

  • %45 Discount - Type 21H Decorative Radiator 514x1400 Anthracite
