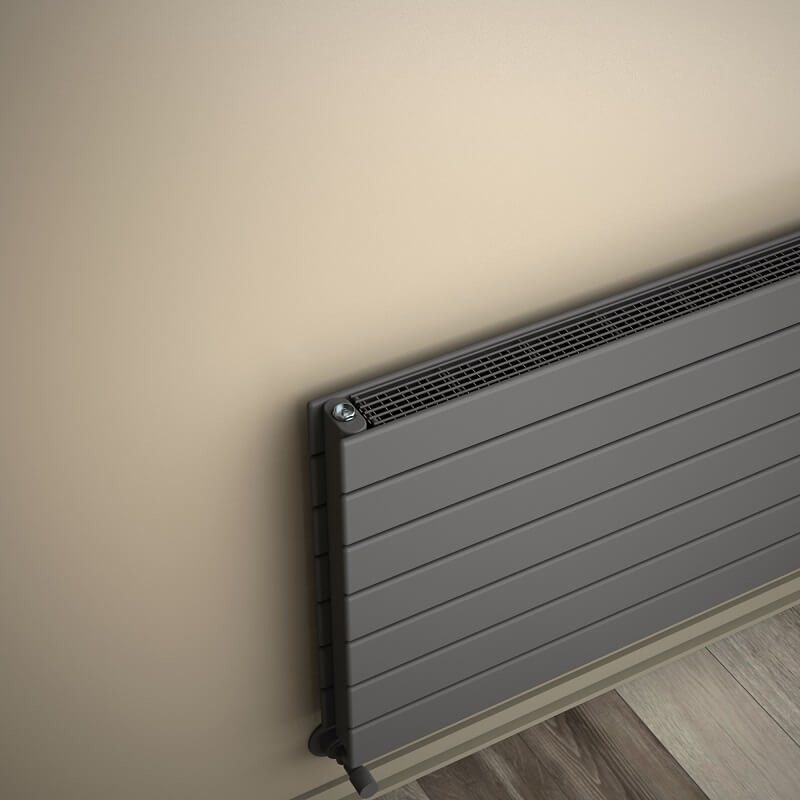

Type 21H Decorative Radiator 514x1500 Anthracite

Product Code : 221H05141500B2TS
Guarantee : 10 Year
TAXES Included
Price
:
56,227.50 TL
Discounted Price
:
30,925.13 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Right 50mm Bottom Right 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Middle 50mm Bottom Middle 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-45cm Entry Right Side-45cm Entry Right

Side-45cm Entry Left Side-45cm Entry Left

Choose Quantity
Planned Delivery
:
24.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 21H

    • Material =Steel

    • Height    =514 mm

    • Width=1500 mm

    • Color/Coating=Anthracite

    • Number of Sections=7 Pieces

    • Total Number of Profiles (Front + Back)=7+7 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=30x60 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=80 mm

    • Wall to Center of Inlet=75 mm

    • Wall Projection Distance=115 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=12,8 lt

    • Weight=43 kg

    • Boxed Weight    =45,62 kg

    • Box Size=57x156x11,6 cm


    TAPPING OPTIONS




    • Standard Entry=1450 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=1590mm

    • Cross Up-Right / Down-Left=1590mm

    • Cross Up-Left / Down-Right=1590mm

    • Side - Right=450mm

    • Side - Left=450mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1555 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1960Kcal/h

    • Heat Output 55/45-20° ?t=30°C=797Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1807 Watt

    • Heat Output 90/70-20°?t=60°C=2277 Watt

    • Heat Output 55/45-20°?t=30°C=926 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=6166 Btu

    • Heat Output 90/70-20°?t=60°C=7770 Btu

    • Heat Output 55/45-20°?t=30°C=3157 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 21H Decorative Radiator 514x1500 White
    AKS Seçenekleri
    Type 21H Decorative Radiator 514x1500 White ∆t50°C=1554 Kcal/h | ∆t60°C= 1959 Kcal/h | 7 Pipes | Heats 10-30 m2
    44,982.00 TL
    24,740.10 TL
  • %45 Discount - Type 21H Decorative Radiator 514x1500 Anthracite
    AKS Seçenekleri
    Type 21H Decorative Radiator 514x1500 Anthracite ∆t50°C=1554 Kcal/h | ∆t60°C= 1959 Kcal/h | 7 Pipes | Heats 10-30 m2
    56,227.50 TL
    30,925.13 TL
  • %45 Discount - Type 21H Decorative Radiator 514x1500 Matte Black
    AKS Seçenekleri
    Type 21H Decorative Radiator 514x1500 Matte Black ∆t50°C=1554 Kcal/h | ∆t60°C= 1959 Kcal/h | 7 Pipes | Heats 10-30 m2
    56,227.50 TL
    30,925.13 TL
  • %45 Discount - Type 21H Decorative Radiator 514x1500 Wood Effect
    AKS Seçenekleri
    Type 21H Decorative Radiator 514x1500 Wood Effect ∆t50°C=1554 Kcal/h | ∆t60°C= 1959 Kcal/h | 7 Pipes | Heats 10-30 m2
    57,762.00 TL
    31,769.10 TL
