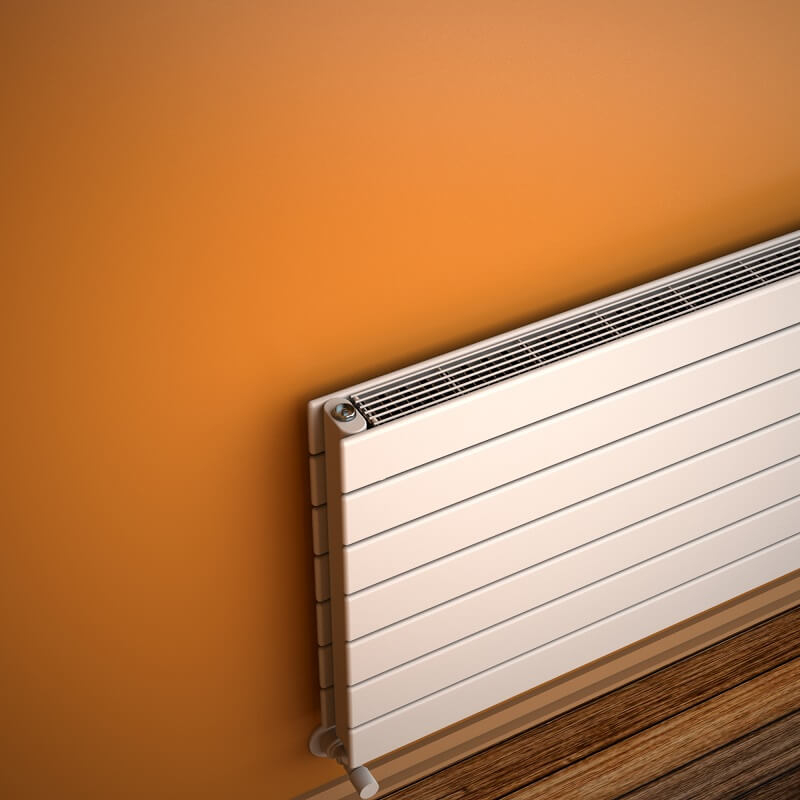

Type 21H Decorative Radiator 514x1600 White

Name: Type 21H Decorative Radiator 514x1600 White
SKU: 221H05141600B1PS
Price: 26013.90 TRY
Availability: InStock

Product Code : 221H05141600B1PS

Guarantee : 10 Year

TAXES Included

Price

47,298.00 TL

Discounted Price

26,013.90 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7925","59_0":"10670","58_0":"13415","57_0":"16160","56_0":"17420","55_0":"18680","54_0":"19940","53_0":"21275","52_0":"21611"},"variant_prices":{"60_0":21678.25,"59_0":22558.25,"58_0":22558.25,"57_0":22558.25,"56_0":22558.25,"55_0":22558.25,"54_0":22558.25,"53_0":22558.25,"52_0":22558.25},"variant_price_raws":{"60_0":21678.25,"59_0":22558.25,"58_0":22558.25,"57_0":22558.25,"56_0":22558.25,"55_0":22558.25,"54_0":22558.25,"53_0":22558.25,"52_0":22558.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"39415","59_0":"41015","58_0":"41015","57_0":"41015","56_0":"41015","55_0":"41015","54_0":"41015","53_0":"41015","52_0":"41015"},"variant_supplier_codes":{"60_0":"221H05141600B1PS","59_0":"221H05141600B1PM2","58_0":"221H05141600B1PM3","57_0":"221H05141600B1PM1","56_0":"221H05141600B1PY0","55_0":"221H05141600B1PC1","54_0":"221H05141600B1PC2","53_0":"221H05141600B1PR2","52_0":"221H05141600B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=514 mm

• Width=1600 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13,6 lt

• Weight=45,8 kg

• Boxed Weight=48,57 kg

• Box Size=57x166x11,6 cm

TAPPING OPTIONS

• Standard Entry=1550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1690mm

• Cross Up-Right / Down-Left=1690mm

• Cross Up-Left / Down-Right=1690mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1658 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2090Kcal/h

• Heat Output 55/45-20° ?t=30°C=849Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1927 Watt

• Heat Output 90/70-20°?t=60°C=2429 Watt

• Heat Output 55/45-20°?t=30°C=987 Watt

Btu

• Heat Output 75/65-20°?t=50°C=6575 Btu

• Heat Output 90/70-20°?t=60°C=8285 Btu

• Heat Output 55/45-20°?t=30°C=3367 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7925","59_0":"10670","58_0":"13415","57_0":"16160","56_0":"17420","55_0":"18680","54_0":"19940","53_0":"21275","52_0":"21611"},"variant_prices":{"60_0":21678.25,"59_0":22558.25,"58_0":22558.25,"57_0":22558.25,"56_0":22558.25,"55_0":22558.25,"54_0":22558.25,"53_0":22558.25,"52_0":22558.25},"variant_price_raws":{"60_0":21678.25,"59_0":22558.25,"58_0":22558.25,"57_0":22558.25,"56_0":22558.25,"55_0":22558.25,"54_0":22558.25,"53_0":22558.25,"52_0":22558.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"39415","59_0":"41015","58_0":"41015","57_0":"41015","56_0":"41015","55_0":"41015","54_0":"41015","53_0":"41015","52_0":"41015"},"variant_supplier_codes":{"60_0":"221H05141600B1PS","59_0":"221H05141600B1PM2","58_0":"221H05141600B1PM3","57_0":"221H05141600B1PM1","56_0":"221H05141600B1PY0","55_0":"221H05141600B1PC1","54_0":"221H05141600B1PC2","53_0":"221H05141600B1PR2","52_0":"221H05141600B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x1600 White ∆t50°C=1657 Kcal/h | ∆t60°C= 2089 Kcal/h | 7 Pipes | Heats 11-32 m2

47,298.00 TL

26,013.90 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7926","59_0":"10671","58_0":"13416","57_0":"16161","56_0":"17421","55_0":"18681","54_0":"19941","53_0":"21276","52_0":"21612"},"variant_prices":{"60_0":27097.8125,"59_0":27977.8125,"58_0":27977.8125,"57_0":27977.8125,"56_0":27977.8125,"55_0":27977.8125,"54_0":27977.8125,"53_0":27977.8125,"52_0":27977.8125},"variant_price_raws":{"60_0":27097.8125,"59_0":27977.8125,"58_0":27977.8125,"57_0":27977.8125,"56_0":27977.8125,"55_0":27977.8125,"54_0":27977.8125,"53_0":27977.8125,"52_0":27977.8125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"49268.75","59_0":"50868.75","58_0":"50868.75","57_0":"50868.75","56_0":"50868.75","55_0":"50868.75","54_0":"50868.75","53_0":"50868.75","52_0":"50868.75"},"variant_supplier_codes":{"60_0":"221H05141600B2TS","59_0":"221H05141600B2TM2","58_0":"221H05141600B2TM3","57_0":"221H05141600B2TM1","56_0":"221H05141600B2TY0","55_0":"221H05141600B2TC1","54_0":"221H05141600B2TC2","53_0":"221H05141600B2TR2","52_0":"221H05141600B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"99","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

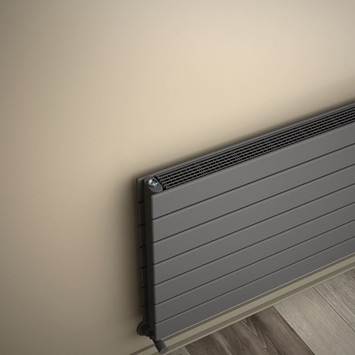

Type 21H Decorative Radiator 514x1600 Anthracite ∆t50°C=1657 Kcal/h | ∆t60°C= 2089 Kcal/h | 7 Pipes | Heats 11-32 m2
