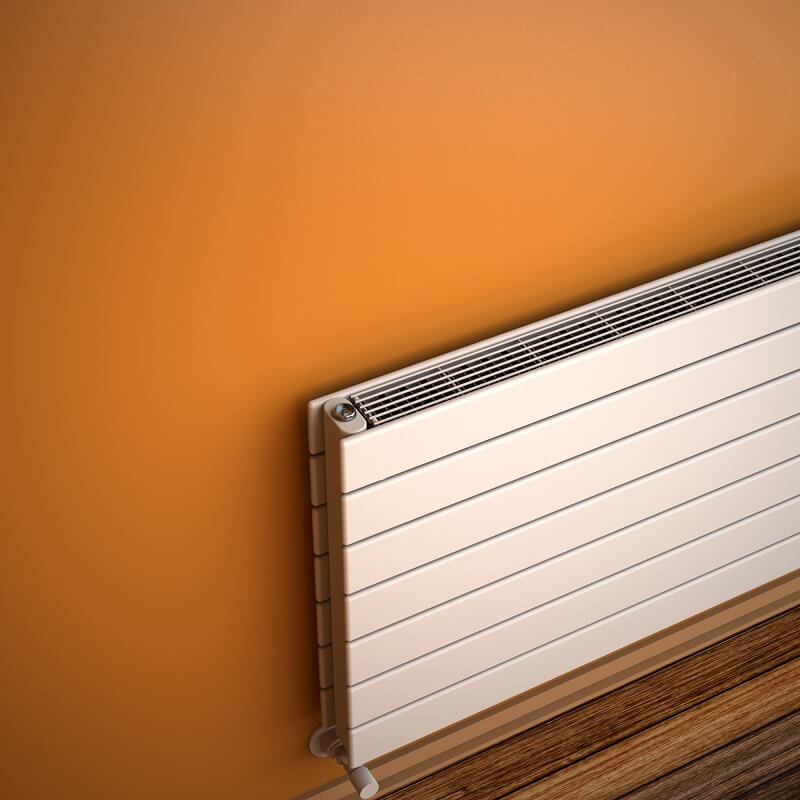

Type 21H Decorative Radiator 514x2100 White

Name: Type 21H Decorative Radiator 514x2100 White
SKU: 221H05142100B1PS
Price: 32471.34 TRY
Availability: InStock

Product Code : 221H05142100B1PS

Guarantee : 10 Year

TAXES Included

Price

59,038.80 TL

Discounted Price

32,471.34 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7945","59_0":"10690","58_0":"13435","57_0":"16180","56_0":"17440","55_0":"18700","54_0":"19960","53_0":"21295","52_0":"21631"},"variant_prices":{"60_0":27059.45,"59_0":27939.45,"58_0":27939.45,"57_0":27939.45,"56_0":27939.45,"55_0":27939.45,"54_0":27939.45,"53_0":27939.45,"52_0":27939.45},"variant_price_raws":{"60_0":27059.45,"59_0":27939.45,"58_0":27939.45,"57_0":27939.45,"56_0":27939.45,"55_0":27939.45,"54_0":27939.45,"53_0":27939.45,"52_0":27939.45},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"49199","59_0":"50799","58_0":"50799","57_0":"50799","56_0":"50799","55_0":"50799","54_0":"50799","53_0":"50799","52_0":"50799"},"variant_supplier_codes":{"60_0":"221H05142100B1PS","59_0":"221H05142100B1PM2","58_0":"221H05142100B1PM3","57_0":"221H05142100B1PM1","56_0":"221H05142100B1PY0","55_0":"221H05142100B1PC1","54_0":"221H05142100B1PC2","53_0":"221H05142100B1PR2","52_0":"221H05142100B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=514 mm

• Width=2100 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17,5 lt

• Weight=59,8 kg

• Boxed Weight=63,34 kg

• Box Size=57x216x11,6 cm

TAPPING OPTIONS

• Standard Entry=2050 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2190mm

• Cross Up-Right / Down-Left=2190mm

• Cross Up-Left / Down-Right=2190mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2176 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2742Kcal/h

• Heat Output 55/45-20° ?t=30°C=1115Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2530 Watt

• Heat Output 90/70-20°?t=60°C=3188 Watt

• Heat Output 55/45-20°?t=30°C=1296 Watt

Btu

• Heat Output 75/65-20°?t=50°C=8633 Btu

• Heat Output 90/70-20°?t=60°C=10878 Btu

• Heat Output 55/45-20°?t=30°C=4421 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7945","59_0":"10690","58_0":"13435","57_0":"16180","56_0":"17440","55_0":"18700","54_0":"19960","53_0":"21295","52_0":"21631"},"variant_prices":{"60_0":27059.45,"59_0":27939.45,"58_0":27939.45,"57_0":27939.45,"56_0":27939.45,"55_0":27939.45,"54_0":27939.45,"53_0":27939.45,"52_0":27939.45},"variant_price_raws":{"60_0":27059.45,"59_0":27939.45,"58_0":27939.45,"57_0":27939.45,"56_0":27939.45,"55_0":27939.45,"54_0":27939.45,"53_0":27939.45,"52_0":27939.45},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"49199","59_0":"50799","58_0":"50799","57_0":"50799","56_0":"50799","55_0":"50799","54_0":"50799","53_0":"50799","52_0":"50799"},"variant_supplier_codes":{"60_0":"221H05142100B1PS","59_0":"221H05142100B1PM2","58_0":"221H05142100B1PM3","57_0":"221H05142100B1PM1","56_0":"221H05142100B1PY0","55_0":"221H05142100B1PC1","54_0":"221H05142100B1PC2","53_0":"221H05142100B1PR2","52_0":"221H05142100B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x2100 White ∆t50°C=2176 Kcal/h | ∆t60°C= 2743 Kcal/h | 7 Pipes | Heats 14-42 m2

59,038.80 TL

32,471.34 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7946","59_0":"10691","58_0":"13436","57_0":"16181","56_0":"17441","55_0":"18701","54_0":"19961","53_0":"21296","52_0":"21632"},"variant_prices":{"60_0":33824.3125,"59_0":34704.3125,"58_0":34704.3125,"57_0":34704.3125,"56_0":34704.3125,"55_0":34704.3125,"54_0":34704.3125,"53_0":34704.3125,"52_0":34704.3125},"variant_price_raws":{"60_0":33824.3125,"59_0":34704.3125,"58_0":34704.3125,"57_0":34704.3125,"56_0":34704.3125,"55_0":34704.3125,"54_0":34704.3125,"53_0":34704.3125,"52_0":34704.3125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"61498.75","59_0":"63098.75","58_0":"63098.75","57_0":"63098.75","56_0":"63098.75","55_0":"63098.75","54_0":"63098.75","53_0":"63098.75","52_0":"63098.75"},"variant_supplier_codes":{"60_0":"221H05142100B2TS","59_0":"221H05142100B2TM2","58_0":"221H05142100B2TM3","57_0":"221H05142100B2TM1","56_0":"221H05142100B2TY0","55_0":"221H05142100B2TC1","54_0":"221H05142100B2TC2","53_0":"221H05142100B2TR2","52_0":"221H05142100B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

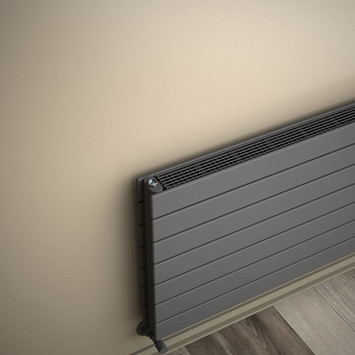

Type 21H Decorative Radiator 514x2100 Anthracite ∆t50°C=2176 Kcal/h | ∆t60°C= 2743 Kcal/h | 7 Pipes | Heats 14-42 m2
