%45 Discount

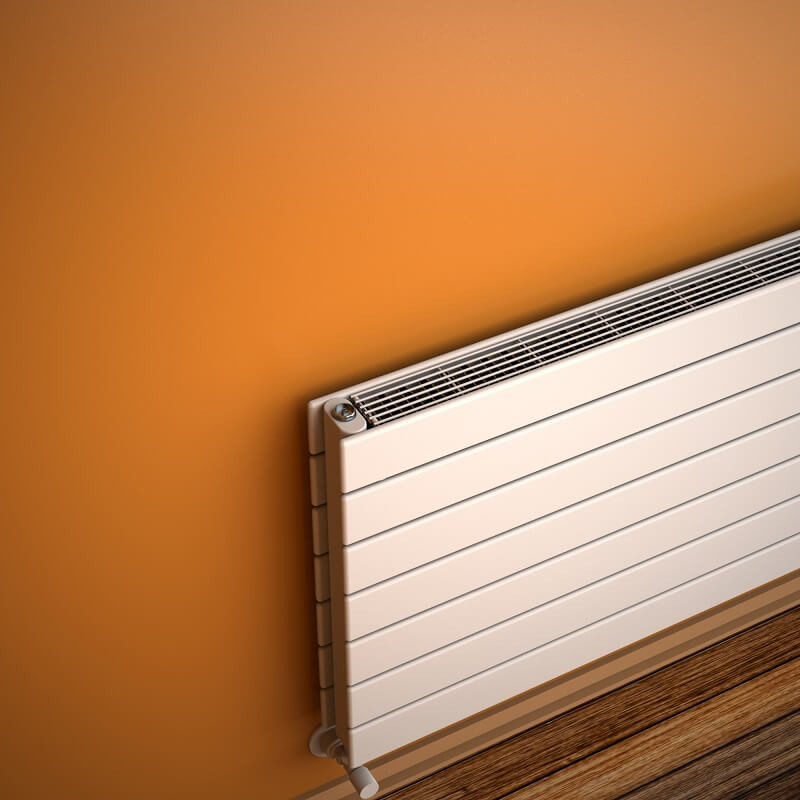

Type 21H Decorative Radiator 514x2300 White

Name: Type 21H Decorative Radiator 514x2300 White
SKU: 221H05142300B1PS
Price: 35063.82 TRY
Availability: InStock

Product Code : 221H05142300B1PS

Guarantee : 10 Year

TAXES Included

Price

63,752.40 TL

Discounted Price

35,063.82 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7953","59_0":"10698","58_0":"13443","57_0":"16188","56_0":"17448","55_0":"18708","54_0":"19968","53_0":"21303","52_0":"21639"},"variant_prices":{"60_0":29219.85,"59_0":30099.85,"58_0":30099.85,"57_0":30099.85,"56_0":30099.85,"55_0":30099.85,"54_0":30099.85,"53_0":30099.85,"52_0":30099.85},"variant_price_raws":{"60_0":29219.85,"59_0":30099.85,"58_0":30099.85,"57_0":30099.85,"56_0":30099.85,"55_0":30099.85,"54_0":30099.85,"53_0":30099.85,"52_0":30099.85},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"53127","59_0":"54727","58_0":"54727","57_0":"54727","56_0":"54727","55_0":"54727","54_0":"54727","53_0":"54727","52_0":"54727"},"variant_supplier_codes":{"60_0":"221H05142300B1PS","59_0":"221H05142300B1PM2","58_0":"221H05142300B1PM3","57_0":"221H05142300B1PM1","56_0":"221H05142300B1PY0","55_0":"221H05142300B1PC1","54_0":"221H05142300B1PC2","53_0":"221H05142300B1PR2","52_0":"221H05142300B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=514 mm

• Width=2300 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=19 lt

• Weight=65,3 kg

• Boxed Weight=69,15 kg

• Box Size=57x236x11,6 cm

TAPPING OPTIONS

• Standard Entry=2250 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2390mm

• Cross Up-Right / Down-Left=2390mm

• Cross Up-Left / Down-Right=2390mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2384 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3004Kcal/h

• Heat Output 55/45-20° ?t=30°C=1221Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2771 Watt

• Heat Output 90/70-20°?t=60°C=3492 Watt

• Heat Output 55/45-20°?t=30°C=1419 Watt

Btu

• Heat Output 75/65-20°?t=50°C=9455 Btu

• Heat Output 90/70-20°?t=60°C=11914 Btu

• Heat Output 55/45-20°?t=30°C=4841 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7953","59_0":"10698","58_0":"13443","57_0":"16188","56_0":"17448","55_0":"18708","54_0":"19968","53_0":"21303","52_0":"21639"},"variant_prices":{"60_0":29219.85,"59_0":30099.85,"58_0":30099.85,"57_0":30099.85,"56_0":30099.85,"55_0":30099.85,"54_0":30099.85,"53_0":30099.85,"52_0":30099.85},"variant_price_raws":{"60_0":29219.85,"59_0":30099.85,"58_0":30099.85,"57_0":30099.85,"56_0":30099.85,"55_0":30099.85,"54_0":30099.85,"53_0":30099.85,"52_0":30099.85},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"53127","59_0":"54727","58_0":"54727","57_0":"54727","56_0":"54727","55_0":"54727","54_0":"54727","53_0":"54727","52_0":"54727"},"variant_supplier_codes":{"60_0":"221H05142300B1PS","59_0":"221H05142300B1PM2","58_0":"221H05142300B1PM3","57_0":"221H05142300B1PM1","56_0":"221H05142300B1PY0","55_0":"221H05142300B1PC1","54_0":"221H05142300B1PC2","53_0":"221H05142300B1PR2","52_0":"221H05142300B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x2300 White ∆t50°C=2383 Kcal/h | ∆t60°C= 3004 Kcal/h | 7 Pipes | Heats 16-46 m2

63,752.40 TL

35,063.82 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7954","59_0":"10699","58_0":"13444","57_0":"16189","56_0":"17449","55_0":"18709","54_0":"19969","53_0":"21304","52_0":"21640"},"variant_prices":{"60_0":36524.8125,"59_0":37404.8125,"58_0":37404.8125,"57_0":37404.8125,"56_0":37404.8125,"55_0":37404.8125,"54_0":37404.8125,"53_0":37404.8125,"52_0":37404.8125},"variant_price_raws":{"60_0":36524.8125,"59_0":37404.8125,"58_0":37404.8125,"57_0":37404.8125,"56_0":37404.8125,"55_0":37404.8125,"54_0":37404.8125,"53_0":37404.8125,"52_0":37404.8125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"66408.75","59_0":"68008.75","58_0":"68008.75","57_0":"68008.75","56_0":"68008.75","55_0":"68008.75","54_0":"68008.75","53_0":"68008.75","52_0":"68008.75"},"variant_supplier_codes":{"60_0":"221H05142300B2TS","59_0":"221H05142300B2TM2","58_0":"221H05142300B2TM3","57_0":"221H05142300B2TM1","56_0":"221H05142300B2TY0","55_0":"221H05142300B2TC1","54_0":"221H05142300B2TC2","53_0":"221H05142300B2TR2","52_0":"221H05142300B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

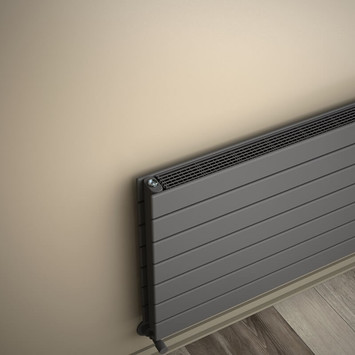

Type 21H Decorative Radiator 514x2300 Anthracite ∆t50°C=2383 Kcal/h | ∆t60°C= 3004 Kcal/h | 7 Pipes | Heats 16-46 m2

79,690.50 TL

43,829.78 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7955","59_0":"10700","58_0":"13445","57_0":"16190","56_0":"17450","55_0":"18710","54_0":"19970","53_0":"21305","52_0":"21641"},"variant_prices":{"60_0":36524.8125,"59_0":37404.8125,"58_0":37404.8125,"57_0":37404.8125,"56_0":37404.8125,"55_0":37404.8125,"54_0":37404.8125,"53_0":37404.8125,"52_0":37404.8125},"variant_price_raws":{"60_0":36524.8125,"59_0":37404.8125,"58_0":37404.8125,"57_0":37404.8125,"56_0":37404.8125,"55_0":37404.8125,"54_0":37404.8125,"53_0":37404.8125,"52_0":37404.8125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"66408.75","59_0":"68008.75","58_0":"68008.75","57_0":"68008.75","56_0":"68008.75","55_0":"68008.75","54_0":"68008.75","53_0":"68008.75","52_0":"68008.75"},"variant_supplier_codes":{"60_0":"221H05142300B3MS","59_0":"221H05142300B3MM2","58_0":"221H05142300B3MM3","57_0":"221H05142300B3MM1","56_0":"221H05142300B3MY0","55_0":"221H05142300B3MC1","54_0":"221H05142300B3MC2","53_0":"221H05142300B3MR2","52_0":"221H05142300B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x2300 Matte Black ∆t50°C=2383 Kcal/h | ∆t60°C= 3004 Kcal/h | 7 Pipes | Heats 16-46 m2

79,690.50 TL

43,829.78 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7956","59_0":"10701","58_0":"13446","57_0":"16191","56_0":"17451","55_0":"18711","54_0":"19971","53_0":"21306","52_0":"21642"},"variant_prices":{"60_0":36871.45,"59_0":37751.45,"58_0":37751.45,"57_0":37751.45,"56_0":37751.45,"55_0":37751.45,"54_0":37751.45,"53_0":37751.45,"52_0":37751.45},"variant_price_raws":{"60_0":36871.45,"59_0":37751.45,"58_0":37751.45,"57_0":37751.45,"56_0":37751.45,"55_0":37751.45,"54_0":37751.45,"53_0":37751.45,"52_0":37751.45},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"67039","59_0":"68639","58_0":"68639","57_0":"68639","56_0":"68639","55_0":"68639","54_0":"68639","53_0":"68639","52_0":"68639"},"variant_supplier_codes":{"60_0":"221H05142300K6FS","59_0":"221H05142300K6FM2","58_0":"221H05142300K6FM3","57_0":"221H05142300K6FM1","56_0":"221H05142300K6FY0","55_0":"221H05142300K6FC1","54_0":"221H05142300K6FC2","53_0":"221H05142300K6FR2","52_0":"221H05142300K6FL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x2300 Wood Effect ∆t50°C=2383 Kcal/h | ∆t60°C= 3004 Kcal/h | 7 Pipes | Heats 16-46 m2

80,446.80 TL

44,245.74 TL
