%45 Discount

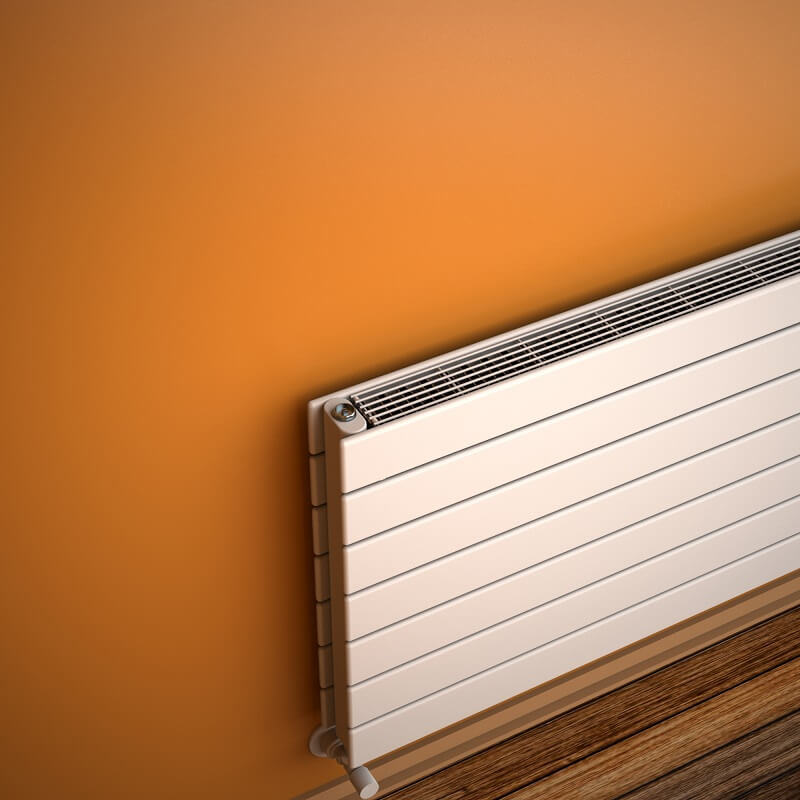

Type 21H Decorative Radiator 514x2400 White

Name: Type 21H Decorative Radiator 514x2400 White
SKU: 221H05142400B1PS
Price: 36336.96 TRY
Availability: InStock

Product Code : 221H05142400B1PS

Guarantee : 10 Year

TAXES Included

Price

66,067.20 TL

Discounted Price

36,336.96 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7957","59_0":"10702","58_0":"13447","57_0":"16192","56_0":"17452","55_0":"18712","54_0":"19972","53_0":"21307","52_0":"21643"},"variant_prices":{"60_0":30280.8,"59_0":31160.8,"58_0":31160.8,"57_0":31160.8,"56_0":31160.8,"55_0":31160.8,"54_0":31160.8,"53_0":31160.8,"52_0":31160.8},"variant_price_raws":{"60_0":30280.8,"59_0":31160.8,"58_0":31160.8,"57_0":31160.8,"56_0":31160.8,"55_0":31160.8,"54_0":31160.8,"53_0":31160.8,"52_0":31160.8},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"55056","59_0":"56656","58_0":"56656","57_0":"56656","56_0":"56656","55_0":"56656","54_0":"56656","53_0":"56656","52_0":"56656"},"variant_supplier_codes":{"60_0":"221H05142400B1PS","59_0":"221H05142400B1PM2","58_0":"221H05142400B1PM3","57_0":"221H05142400B1PM1","56_0":"221H05142400B1PY0","55_0":"221H05142400B1PC1","54_0":"221H05142400B1PC2","53_0":"221H05142400B1PR2","52_0":"221H05142400B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=514 mm

• Width=2400 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=19,8 lt

• Weight=68,1 kg

• Boxed Weight=72,11 kg

• Box Size=57x246x11,6 cm

TAPPING OPTIONS

• Standard Entry=2350 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2490mm

• Cross Up-Right / Down-Left=2490mm

• Cross Up-Left / Down-Right=2490mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2487 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3134Kcal/h

• Heat Output 55/45-20° ?t=30°C=1274Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2891 Watt

• Heat Output 90/70-20°?t=60°C=3643 Watt

• Heat Output 55/45-20°?t=30°C=1481 Watt

Btu

• Heat Output 75/65-20°?t=50°C=9865 Btu

• Heat Output 90/70-20°?t=60°C=12430 Btu

• Heat Output 55/45-20°?t=30°C=5051 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
