%45 Discount

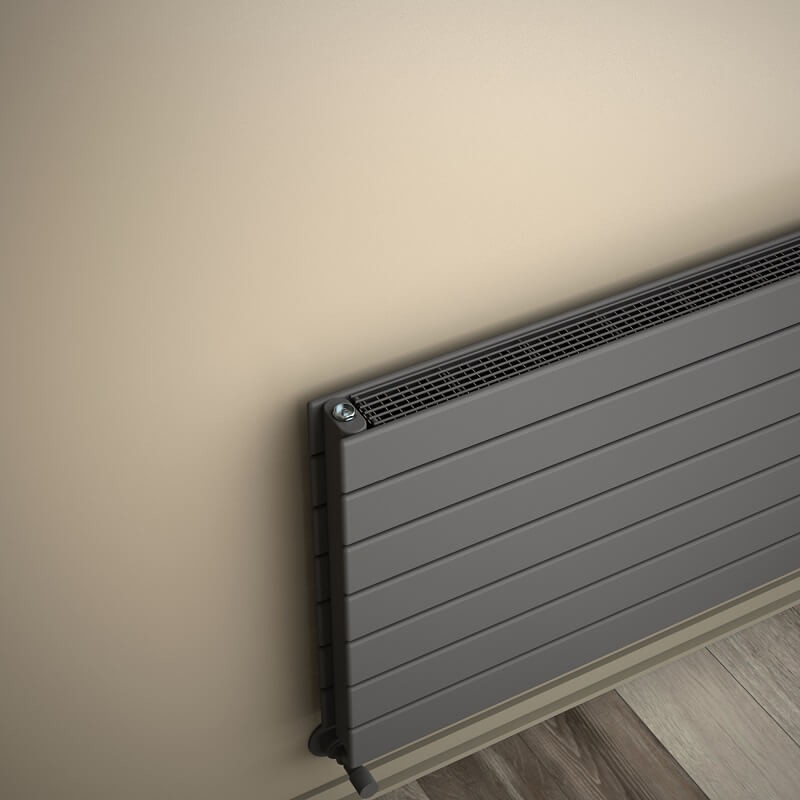

Type 21H Decorative Radiator 514x2600 Anthracite

Name: Type 21H Decorative Radiator 514x2600 Anthracite
SKU: 221H05142600B2TS
Price: 48661.80 TRY
Availability: InStock

Product Code : 221H05142600B2TS

Guarantee : 10 Year

TAXES Included

Price

88,476.00 TL

Discounted Price

48,661.80 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7966","59_0":"10711","58_0":"13456","57_0":"16201","56_0":"17461","55_0":"18721","54_0":"19981","53_0":"21316","52_0":"21652"},"variant_prices":{"60_0":40551.5,"59_0":41431.5,"58_0":41431.5,"57_0":41431.5,"56_0":41431.5,"55_0":41431.5,"54_0":41431.5,"53_0":41431.5,"52_0":41431.5},"variant_price_raws":{"60_0":40551.5,"59_0":41431.5,"58_0":41431.5,"57_0":41431.5,"56_0":41431.5,"55_0":41431.5,"54_0":41431.5,"53_0":41431.5,"52_0":41431.5},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"73730","59_0":"75330","58_0":"75330","57_0":"75330","56_0":"75330","55_0":"75330","54_0":"75330","53_0":"75330","52_0":"75330"},"variant_supplier_codes":{"60_0":"221H05142600B2TS","59_0":"221H05142600B2TM2","58_0":"221H05142600B2TM3","57_0":"221H05142600B2TM1","56_0":"221H05142600B2TY0","55_0":"221H05142600B2TC1","54_0":"221H05142600B2TC2","53_0":"221H05142600B2TR2","52_0":"221H05142600B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=514 mm

• Width=2600 mm

• Color/Coating=Anthracite

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=21,3 lt

• Weight=73,7 kg

• Boxed Weight=78,01 kg

• Box Size=57x266x11,6 cm

TAPPING OPTIONS

• Standard Entry=2550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2690mm

• Cross Up-Right / Down-Left=2690mm

• Cross Up-Left / Down-Right=2690mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2694 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3395Kcal/h

• Heat Output 55/45-20° ?t=30°C=1380Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=3132 Watt

• Heat Output 90/70-20°?t=60°C=3947 Watt

• Heat Output 55/45-20°?t=30°C=1604 Watt

Btu

• Heat Output 75/65-20°?t=50°C=10687 Btu

• Heat Output 90/70-20°?t=60°C=13466 Btu

• Heat Output 55/45-20°?t=30°C=5472 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
