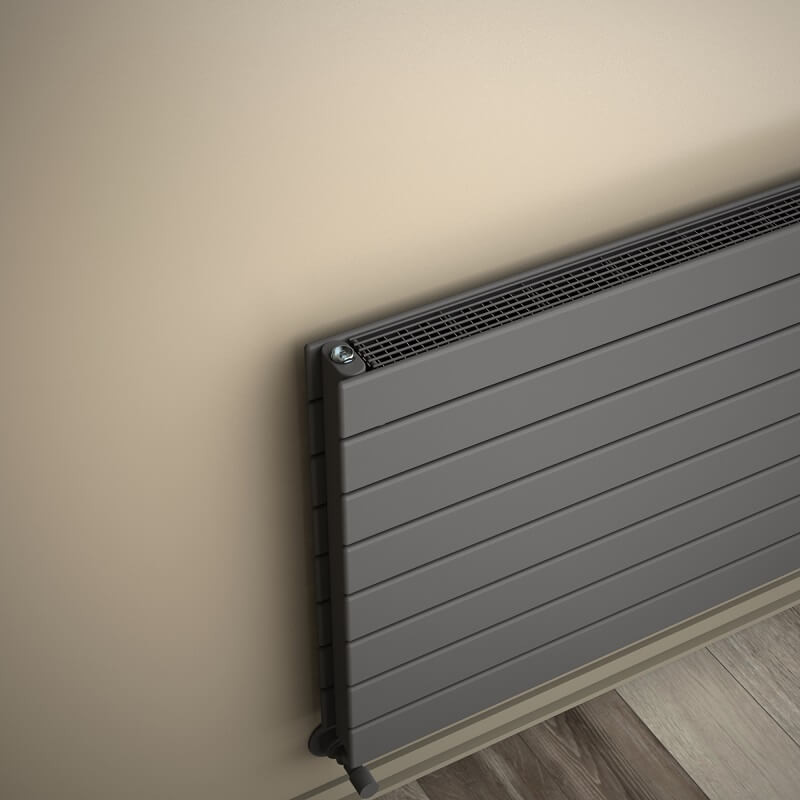

Type 21H Decorative Radiator 588x1300 Anthracite

Name: Type 21H Decorative Radiator 588x1300 Anthracite
SKU: 221H05881300B2TS
Price: 30868.20 TRY
Availability: InStock

Product Code : 221H05881300B2TS

Guarantee : 10 Year

TAXES Included

Price

56,124.00 TL

Discounted Price

30,868.20 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"7986","68_0":"16221","67_0":"13476","66_0":"10731","65_0":"17481","64_0":"18741","63_0":"20001","62_0":"22176","61_0":"21906"},"variant_prices":{"69_0":25723.5,"68_0":26603.5,"67_0":26603.5,"66_0":26603.5,"65_0":26603.5,"64_0":26603.5,"63_0":26603.5,"62_0":26603.5,"61_0":26603.5},"variant_price_raws":{"69_0":25723.5,"68_0":26603.5,"67_0":26603.5,"66_0":26603.5,"65_0":26603.5,"64_0":26603.5,"63_0":26603.5,"62_0":26603.5,"61_0":26603.5},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"46770","68_0":"48370","67_0":"48370","66_0":"48370","65_0":"48370","64_0":"48370","63_0":"48370","62_0":"48370","61_0":"48370"},"variant_supplier_codes":{"69_0":"221H05881300B2TS","68_0":"221H05881300B2TM1","67_0":"221H05881300B2TM3","66_0":"221H05881300B2TM2","65_0":"221H05881300B2TY0","64_0":"221H05881300B2TC1","63_0":"221H05881300B2TC2","62_0":"221H05881300B2TL4","61_0":"221H05881300B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"100","66_0":"100","65_0":"98","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=588 mm

• Width=1300 mm

• Color/Coating=Anthracite

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,9 lt

• Weight=42,8 kg

• Boxed Weight=45,4 kg

• Box Size=64x136x11,6 cm

TAPPING OPTIONS

• Standard Entry=1250 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1390mm

• Cross Up-Right / Down-Left=1390mm

• Cross Up-Left / Down-Right=1390mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1483 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1869Kcal/h

• Heat Output 55/45-20° ?t=30°C=760Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1724 Watt

• Heat Output 90/70-20°?t=60°C=2173 Watt

• Heat Output 55/45-20°?t=30°C=883 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5883 Btu

• Heat Output 90/70-20°?t=60°C=7413 Btu

• Heat Output 55/45-20°?t=30°C=3013 Btu
