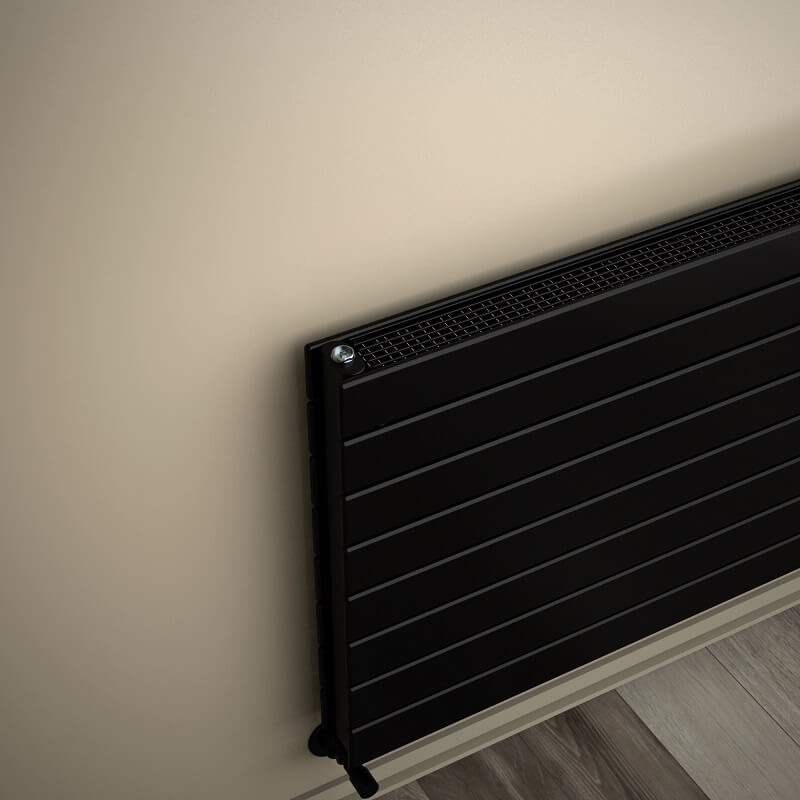

Type 21H Decorative Radiator 588x2200 Matte Black

Name: Type 21H Decorative Radiator 588x2200 Matte Black
SKU: 221H05882200B3MS
Price: 47411.10 TRY
Availability: InStock

Product Code : 221H05882200B3MS

Guarantee : 10 Year

TAXES Included

Price

86,202.00 TL

Discounted Price

47,411.10 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"8011","68_0":"16246","67_0":"13501","66_0":"10756","65_0":"17506","64_0":"18766","63_0":"20026","62_0":"22201","61_0":"21931"},"variant_prices":{"69_0":39509.25,"68_0":40389.25,"67_0":40389.25,"66_0":40389.25,"65_0":40389.25,"64_0":40389.25,"63_0":40389.25,"62_0":40389.25,"61_0":40389.25},"variant_price_raws":{"69_0":39509.25,"68_0":40389.25,"67_0":40389.25,"66_0":40389.25,"65_0":40389.25,"64_0":40389.25,"63_0":40389.25,"62_0":40389.25,"61_0":40389.25},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"71835","68_0":"73435","67_0":"73435","66_0":"73435","65_0":"73435","64_0":"73435","63_0":"73435","62_0":"73435","61_0":"73435"},"variant_supplier_codes":{"69_0":"221H05882200B3MS","68_0":"221H05882200B3MM1","67_0":"221H05882200B3MM3","66_0":"221H05882200B3MM2","65_0":"221H05882200B3MY0","64_0":"221H05882200B3MC1","63_0":"221H05882200B3MC2","62_0":"221H05882200B3ML4","61_0":"221H05882200B3MR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=588 mm

• Width=2200 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=20,9 lt

• Weight=71,5 kg

• Boxed Weight=75,69 kg

• Box Size=64x226x11,6 cm

TAPPING OPTIONS

• Standard Entry=2150 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2290mm

• Cross Up-Right / Down-Left=2290mm

• Cross Up-Left / Down-Right=2290mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2509 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3162Kcal/h

• Heat Output 55/45-20° ?t=30°C=1285Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2917 Watt

• Heat Output 90/70-20°?t=60°C=3676 Watt

• Heat Output 55/45-20°?t=30°C=1494 Watt

Btu

• Heat Output 75/65-20°?t=50°C=9953 Btu

• Heat Output 90/70-20°?t=60°C=12541 Btu

• Heat Output 55/45-20°?t=30°C=5096 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
