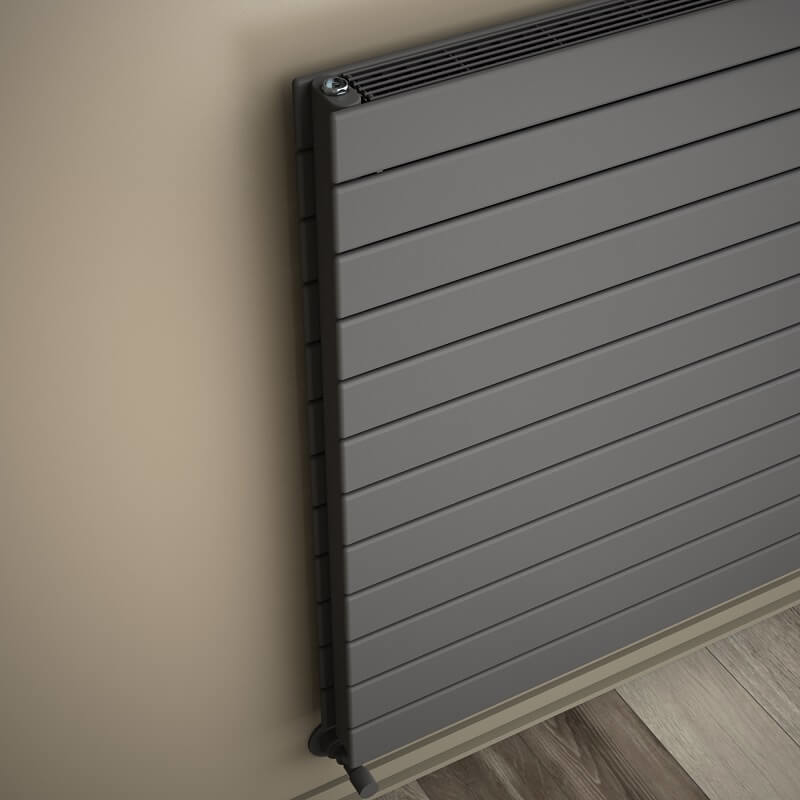

Type 21H Decorative Radiator 884x2100 Anthracite

Name: Type 21H Decorative Radiator 884x2100 Anthracite
SKU: 221H08842100B2TS
Price: 65432.40 TRY
Availability: InStock

Product Code : 221H08842100B2TS

Guarantee : 10 Year

TAXES Included

Price

118,968.00 TL

Discounted Price

65,432.40 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8090","76_0":"16325","75_0":"13580","74_0":"10835","73_0":"17585","72_0":"18845","71_0":"20105","70_0":"22508","78_0":"22844"},"variant_prices":{"77_0":54527,"76_0":55407,"75_0":55407,"74_0":55407,"73_0":55407,"72_0":55407,"71_0":55407,"70_0":55407,"78_0":55407},"variant_price_raws":{"77_0":54527,"76_0":55407,"75_0":55407,"74_0":55407,"73_0":55407,"72_0":55407,"71_0":55407,"70_0":55407,"78_0":55407},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"99140","76_0":"100740","75_0":"100740","74_0":"100740","73_0":"100740","72_0":"100740","71_0":"100740","70_0":"100740","78_0":"100740"},"variant_supplier_codes":{"77_0":"221H08842100B2TS","76_0":"221H08842100B2TM1","75_0":"221H08842100B2TM3","74_0":"221H08842100B2TM2","73_0":"221H08842100B2TY0","72_0":"221H08842100B2TC1","71_0":"221H08842100B2TC2","70_0":"221H08842100B2TR5","78_0":"221H08842100B2TL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-85cm Entry Right

Side-85cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=884 mm

• Width=2100 mm

• Color/Coating=Anthracite

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=30 lt

• Weight=102,4 kg

• Boxed Weight=108,27 kg

• Box Size=94x216x11,6 cm

TAPPING OPTIONS

• Standard Entry=2050 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2190mm

• Cross Up-Right / Down-Left=2190mm

• Cross Up-Left / Down-Right=2190mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 3213 Kcal/h

• Heat Output 90/70-20° ?t=60°C=4049Kcal/h

• Heat Output 55/45-20° ?t=30°C=1646Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=3736 Watt

• Heat Output 90/70-20°?t=60°C=4708 Watt

• Heat Output 55/45-20°?t=30°C=1913 Watt

Btu

• Heat Output 75/65-20°?t=50°C=12748 Btu

• Heat Output 90/70-20°?t=60°C=16063 Btu

• Heat Output 55/45-20°?t=30°C=6527 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
