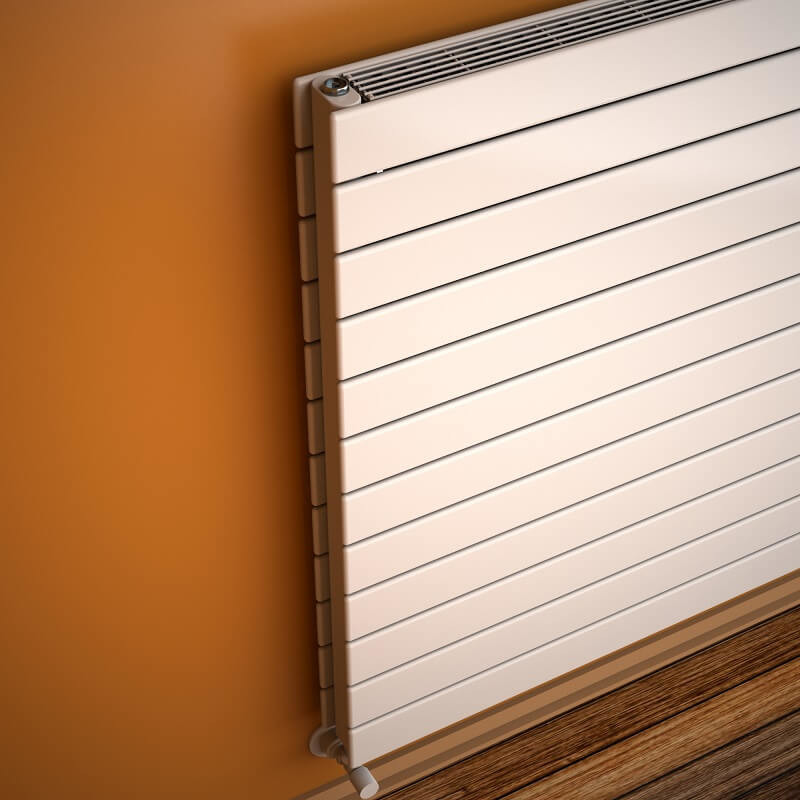

Type 21H Decorative Radiator 884x2400 White

Product Code : 221H08842400B1PS
Guarantee : 10 Year
TAXES Included
Price
:
107,080.80 TL
Discounted Price
:
58,894.44 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-85cm Entry Right Side-85cm Entry Right

Side-85cm Entry Left Side-85cm Entry Left

Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 21H

    • Material =Steel

    • Height    =884 mm

    • Width=2400 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=12 Pieces

    • Total Number of Profiles (Front + Back)=12+12 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=30x60 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=80 mm

    • Wall to Center of Inlet=75 mm

    • Wall Projection Distance=115 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=33,9 lt

    • Weight=116,8 kg

    • Boxed Weight    =123,47 kg

    • Box Size=94x246x11,6 cm


    TAPPING OPTIONS




    • Standard Entry=2350 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=2490mm

    • Cross Up-Right / Down-Left=2490mm

    • Cross Up-Left / Down-Right=2490mm

    • Side - Right=850mm

    • Side - Left=850mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 3672 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=4627Kcal/h

    • Heat Output 55/45-20° ?t=30°C=1881Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=4269 Watt

    • Heat Output 90/70-20°?t=60°C=5379 Watt

    • Heat Output 55/45-20°?t=30°C=2186 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=14566 Btu

    • Heat Output 90/70-20°?t=60°C=18354 Btu

    • Heat Output 55/45-20°?t=30°C=7458 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 21H Decorative Radiator 884x2400 White
    AKS Seçenekleri
    Type 21H Decorative Radiator 884x2400 White ∆t50°C=3671 Kcal/h | ∆t60°C= 4627 Kcal/h | 12 Pipes | Heats 24-71 m2
    107,080.80 TL
    58,894.44 TL
  • %45 Discount - Type 21H Decorative Radiator 884x2400 Anthracite
    AKS Seçenekleri
    Type 21H Decorative Radiator 884x2400 Anthracite ∆t50°C=3671 Kcal/h | ∆t60°C= 4627 Kcal/h | 12 Pipes | Heats 24-71 m2
    133,851.00 TL
    73,618.05 TL
  • %45 Discount - Type 21H Decorative Radiator 884x2400 Matte Black
    AKS Seçenekleri
    Type 21H Decorative Radiator 884x2400 Matte Black ∆t50°C=3671 Kcal/h | ∆t60°C= 4627 Kcal/h | 12 Pipes | Heats 24-71 m2
    133,851.00 TL
    73,618.05 TL
  • %45 Discount - Type 21H Decorative Radiator 884x2400 Wood Effect
    AKS Seçenekleri
    Type 21H Decorative Radiator 884x2400 Wood Effect ∆t50°C=3671 Kcal/h | ∆t60°C= 4627 Kcal/h | 12 Pipes | Heats 24-71 m2
    132,718.80 TL
    72,995.34 TL
