%45 Discount

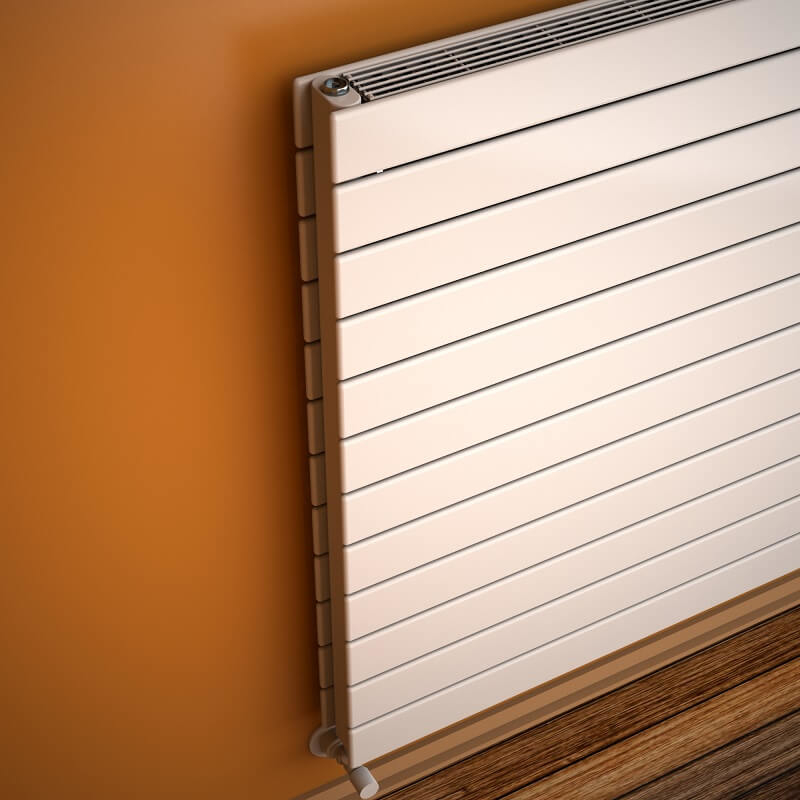

Type 21H Decorative Radiator 884x900 White

Name: Type 21H Decorative Radiator 884x900 White
SKU: 221H08840900B1PS
Price: 26059.44 TRY
Availability: InStock

Product Code : 221H08840900B1PS

Guarantee : 10 Year

TAXES Included

Price

47,380.80 TL

Discounted Price

26,059.44 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8041","76_0":"16276","75_0":"13531","74_0":"10786","73_0":"17536","72_0":"18796","71_0":"20056","70_0":"22459","78_0":"22795"},"variant_prices":{"77_0":21716.2,"76_0":22596.2,"75_0":22596.2,"74_0":22596.2,"73_0":22596.2,"72_0":22596.2,"71_0":22596.2,"70_0":22596.2,"78_0":22596.2},"variant_price_raws":{"77_0":21716.2,"76_0":22596.2,"75_0":22596.2,"74_0":22596.2,"73_0":22596.2,"72_0":22596.2,"71_0":22596.2,"70_0":22596.2,"78_0":22596.2},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"39484","76_0":"41084","75_0":"41084","74_0":"41084","73_0":"41084","72_0":"41084","71_0":"41084","70_0":"41084","78_0":"41084"},"variant_supplier_codes":{"77_0":"221H08840900B1PS","76_0":"221H08840900B1PM1","75_0":"221H08840900B1PM3","74_0":"221H08840900B1PM2","73_0":"221H08840900B1PY0","72_0":"221H08840900B1PC1","71_0":"221H08840900B1PC2","70_0":"221H08840900B1PR5","78_0":"221H08840900B1PL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-85cm Entry Right

Side-85cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=884 mm

• Width=900 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=14,1 lt

• Weight=45 kg

• Boxed Weight=47,69 kg

• Box Size=94x96x11,6 cm

TAPPING OPTIONS

• Standard Entry=850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=990mm

• Cross Up-Right / Down-Left=990mm

• Cross Up-Left / Down-Right=990mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1377 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1736Kcal/h

• Heat Output 55/45-20° ?t=30°C=706Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1601 Watt

• Heat Output 90/70-20°?t=60°C=2018 Watt

• Heat Output 55/45-20°?t=30°C=820 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5463 Btu

• Heat Output 90/70-20°?t=60°C=6884 Btu

• Heat Output 55/45-20°?t=30°C=2798 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8041","76_0":"16276","75_0":"13531","74_0":"10786","73_0":"17536","72_0":"18796","71_0":"20056","70_0":"22459","78_0":"22795"},"variant_prices":{"77_0":21716.2,"76_0":22596.2,"75_0":22596.2,"74_0":22596.2,"73_0":22596.2,"72_0":22596.2,"71_0":22596.2,"70_0":22596.2,"78_0":22596.2},"variant_price_raws":{"77_0":21716.2,"76_0":22596.2,"75_0":22596.2,"74_0":22596.2,"73_0":22596.2,"72_0":22596.2,"71_0":22596.2,"70_0":22596.2,"78_0":22596.2},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"39484","76_0":"41084","75_0":"41084","74_0":"41084","73_0":"41084","72_0":"41084","71_0":"41084","70_0":"41084","78_0":"41084"},"variant_supplier_codes":{"77_0":"221H08840900B1PS","76_0":"221H08840900B1PM1","75_0":"221H08840900B1PM3","74_0":"221H08840900B1PM2","73_0":"221H08840900B1PY0","72_0":"221H08840900B1PC1","71_0":"221H08840900B1PC2","70_0":"221H08840900B1PR5","78_0":"221H08840900B1PL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Type 21H Decorative Radiator 884x900 White ∆t50°C=1377 Kcal/h | ∆t60°C= 1736 Kcal/h | 12 Pipes | Heats 9-27 m2

47,380.80 TL

26,059.44 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8042","76_0":"16277","75_0":"13532","74_0":"10787","73_0":"17537","72_0":"18797","71_0":"20057","70_0":"22460","78_0":"22796"},"variant_prices":{"77_0":27145.25,"76_0":28025.25,"75_0":28025.25,"74_0":28025.25,"73_0":28025.25,"72_0":28025.25,"71_0":28025.25,"70_0":28025.25,"78_0":28025.25},"variant_price_raws":{"77_0":27145.25,"76_0":28025.25,"75_0":28025.25,"74_0":28025.25,"73_0":28025.25,"72_0":28025.25,"71_0":28025.25,"70_0":28025.25,"78_0":28025.25},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"49355","76_0":"50955","75_0":"50955","74_0":"50955","73_0":"50955","72_0":"50955","71_0":"50955","70_0":"50955","78_0":"50955"},"variant_supplier_codes":{"77_0":"221H08840900B2TS","76_0":"221H08840900B2TM1","75_0":"221H08840900B2TM3","74_0":"221H08840900B2TM2","73_0":"221H08840900B2TY0","72_0":"221H08840900B2TC1","71_0":"221H08840900B2TC2","70_0":"221H08840900B2TR5","78_0":"221H08840900B2TL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

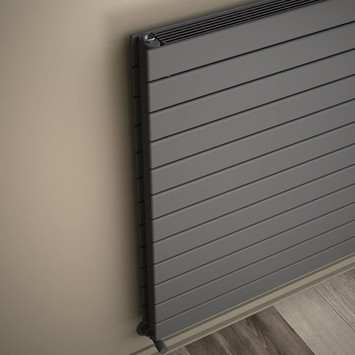

Type 21H Decorative Radiator 884x900 Anthracite ∆t50°C=1377 Kcal/h | ∆t60°C= 1736 Kcal/h | 12 Pipes | Heats 9-27 m2

59,226.00 TL

32,574.30 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8043","76_0":"16278","75_0":"13533","74_0":"10788","73_0":"17538","72_0":"18798","71_0":"20058","70_0":"22461","78_0":"22797"},"variant_prices":{"77_0":27145.25,"76_0":28025.25,"75_0":28025.25,"74_0":28025.25,"73_0":28025.25,"72_0":28025.25,"71_0":28025.25,"70_0":28025.25,"78_0":28025.25},"variant_price_raws":{"77_0":27145.25,"76_0":28025.25,"75_0":28025.25,"74_0":28025.25,"73_0":28025.25,"72_0":28025.25,"71_0":28025.25,"70_0":28025.25,"78_0":28025.25},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"49355","76_0":"50955","75_0":"50955","74_0":"50955","73_0":"50955","72_0":"50955","71_0":"50955","70_0":"50955","78_0":"50955"},"variant_supplier_codes":{"77_0":"221H08840900B3MS","76_0":"221H08840900B3MM1","75_0":"221H08840900B3MM3","74_0":"221H08840900B3MM2","73_0":"221H08840900B3MY0","72_0":"221H08840900B3MC1","71_0":"221H08840900B3MC2","70_0":"221H08840900B3MR5","78_0":"221H08840900B3ML5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Type 21H Decorative Radiator 884x900 Matte Black ∆t50°C=1377 Kcal/h | ∆t60°C= 1736 Kcal/h | 12 Pipes | Heats 9-27 m2

59,226.00 TL

32,574.30 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8044","76_0":"16279","75_0":"13534","74_0":"10789","73_0":"17539","72_0":"18799","71_0":"20059","70_0":"22462","78_0":"22798"},"variant_prices":{"77_0":27680.95,"76_0":28560.95,"75_0":28560.95,"74_0":28560.95,"73_0":28560.95,"72_0":28560.95,"71_0":28560.95,"70_0":28560.95,"78_0":28560.95},"variant_price_raws":{"77_0":27680.95,"76_0":28560.95,"75_0":28560.95,"74_0":28560.95,"73_0":28560.95,"72_0":28560.95,"71_0":28560.95,"70_0":28560.95,"78_0":28560.95},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"50329","76_0":"51929","75_0":"51929","74_0":"51929","73_0":"51929","72_0":"51929","71_0":"51929","70_0":"51929","78_0":"51929"},"variant_supplier_codes":{"77_0":"221H08840900K6FS","76_0":"221H08840900K6FM1","75_0":"221H08840900K6FM3","74_0":"221H08840900K6FM2","73_0":"221H08840900K6FY0","72_0":"221H08840900K6FC1","71_0":"221H08840900K6FC2","70_0":"221H08840900K6FR5","78_0":"221H08840900K6FL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Type 21H Decorative Radiator 884x900 Wood Effect ∆t50°C=1377 Kcal/h | ∆t60°C= 1736 Kcal/h | 12 Pipes | Heats 9-27 m2

60,394.80 TL

33,217.14 TL
