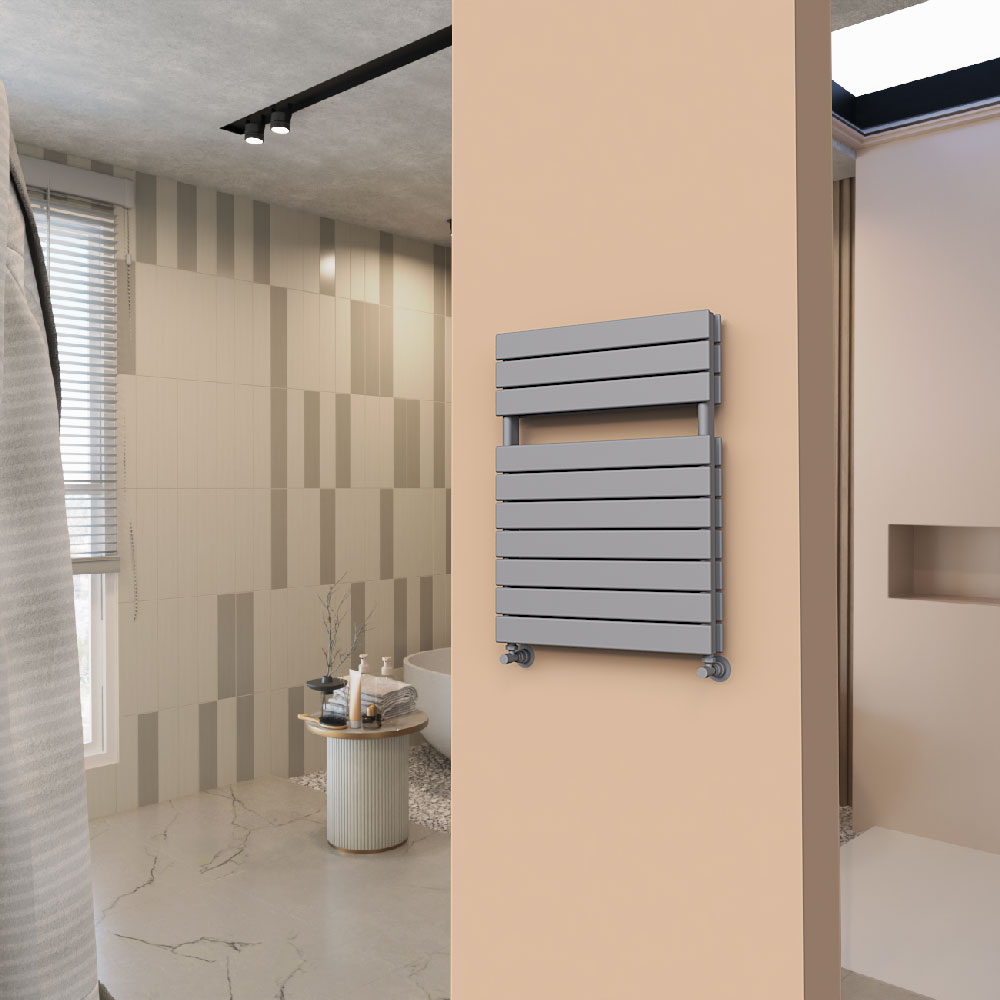

Type 21H Decorative Towel Warmer 600x810 Anthracite

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Tip 21H

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 600 mm

• Height = 810 mm

• Color/Coating = Anthracite

• Tapping Distance = 550 mm

• Maximum Working Pressure = 4,5 bar

• Wall to Center of Inlet = 75 mm

• Wall Projection Distance = 115 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 8,5 lt

• Weight = 25,2 kg

• Boxed Weight = 26,3 kg

• Box Size = 64x86x12 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 774 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 976 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 397 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 900 Watt

• Heat Output 90/70-20° ?t=60°C = 1134 Watt

• Heat Output 55/45-20° ?t=30°C = 461 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 3071 Btu

• Heat Output 90/70-20° ?t=60°C = 3870 Btu

• Heat Output 55/45-20° ?t=30°C = 1573 Btu
