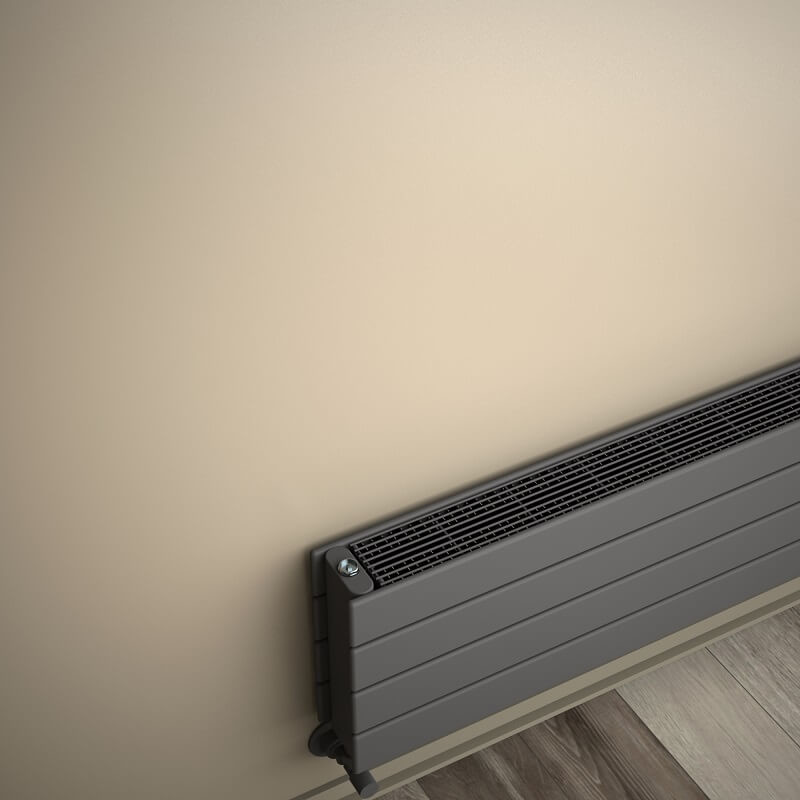

Type 22H Decorative Radiator 292x2200 Anthracite

Product Code : 222H02922200B2TS
Guarantee : 10 Year
TAXES Included
Price
:
51,370.50 TL
Discounted Price
:
28,253.78 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Right 50mm Bottom Right 50mm

Bottom Left 50mm Bottom Left 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-25cm Entry Right Side-25cm Entry Right

Side-25cm Entry Left Side-25cm Entry Left

Choose Quantity
Planned Delivery
:
24.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 22H

    • Material =Steel

    • Height    =292 mm

    • Width=2200 mm

    • Color/Coating=Anthracite

    • Number of Sections=4 Pieces

    • Total Number of Profiles (Front + Back)=4+4 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=30x80 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=100 mm

    • Wall to Center of Inlet=85 mm

    • Wall Projection Distance=135 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=9,7 lt

    • Weight=39,1 kg

    • Boxed Weight    =41,33 kg

    • Box Size=35x226x13,6 cm


    TAPPING OPTIONS




    • Standard Entry=2150 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=2290mm

    • Cross Up-Right / Down-Left=2290mm

    • Cross Up-Left / Down-Right=2290mm

    • Side - Right=250mm

    • Side - Left=250mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1867 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=2353Kcal/h

    • Heat Output 55/45-20° ?t=30°C=956Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=2170 Watt

    • Heat Output 90/70-20°?t=60°C=2735 Watt

    • Heat Output 55/45-20°?t=30°C=1112 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=7405 Btu

    • Heat Output 90/70-20°?t=60°C=9331 Btu

    • Heat Output 55/45-20°?t=30°C=3792 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 22H Decorative Radiator 292x2200 White
    AKS Seçenekleri
    Type 22H Decorative Radiator 292x2200 White ∆t50°C=1866 Kcal/h | ∆t60°C= 2352 Kcal/h | 4 Pipes | Heats 12-36 m2
    41,096.40 TL
    22,603.02 TL
  • %45 Discount - Type 22H Decorative Radiator 292x2200 Anthracite
    AKS Seçenekleri
    Type 22H Decorative Radiator 292x2200 Anthracite ∆t50°C=1866 Kcal/h | ∆t60°C= 2352 Kcal/h | 4 Pipes | Heats 12-36 m2
    51,370.50 TL
    28,253.78 TL
  • %45 Discount - Type 22H Decorative Radiator 292x2200 Matte Black
    AKS Seçenekleri
    Type 22H Decorative Radiator 292x2200 Matte Black ∆t50°C=1866 Kcal/h | ∆t60°C= 2352 Kcal/h | 4 Pipes | Heats 12-36 m2
    51,370.50 TL
    28,253.78 TL
  • %45 Discount - Type 22H Decorative Radiator 292x2200 Wood Effect
    AKS Seçenekleri
    Type 22H Decorative Radiator 292x2200 Wood Effect ∆t50°C=1866 Kcal/h | ∆t60°C= 2352 Kcal/h | 4 Pipes | Heats 12-36 m2
    52,651.20 TL
    28,958.16 TL
