TECHNICAL INFORMATION

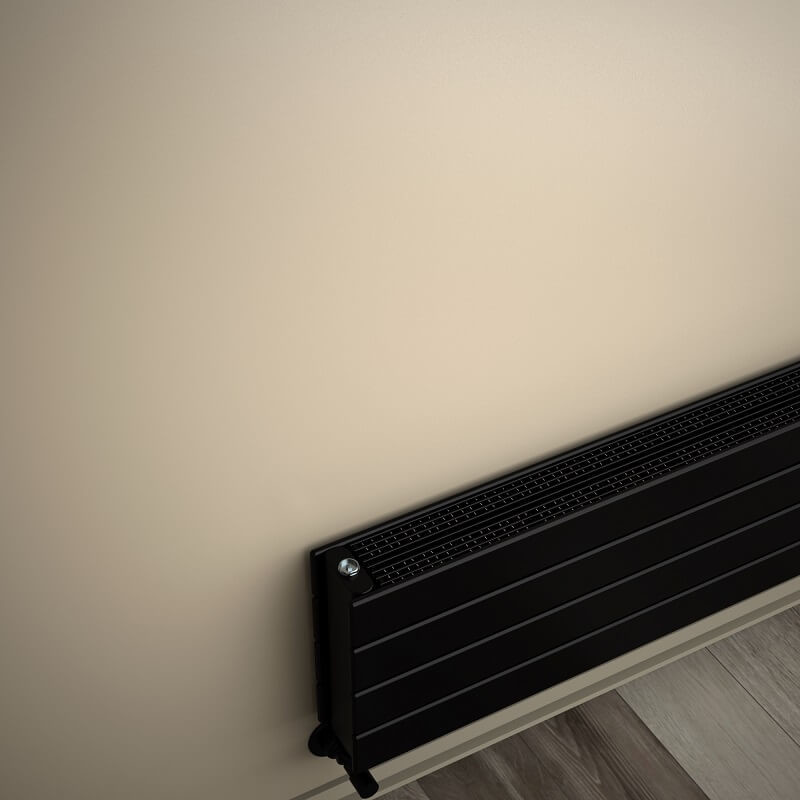

• Model = 22H
• Material =Steel
• Height=292 mm
• Width=2400 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+4 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=30x80 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=100 mm
• Wall to Center of Inlet=85 mm
• Wall Projection Distance=135 mm
• Radiator Thread Dimension=1/2"
• Water Volume=10,5 lt
• Weight=42,6 kg
• Boxed Weight=45,01 kg
• Box Size=35x246x13,6 cmTAPPING OPTIONS
• Standard Entry=2350 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=2490mm
• Cross Up-Right / Down-Left=2490mm
• Cross Up-Left / Down-Right=2490mm
• Side - Right=250mm
• Side - Left=250mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 2036 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2566Kcal/h
• Heat Output 55/45-20° ?t=30°C=1043Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2367 Watt
• Heat Output 90/70-20°?t=60°C=2983 Watt
• Heat Output 55/45-20°?t=30°C=1212 Watt
Btu
• Heat Output 75/65-20°?t=50°C=8077 Btu
• Heat Output 90/70-20°?t=60°C=10178 Btu
• Heat Output 55/45-20°?t=30°C=4136 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

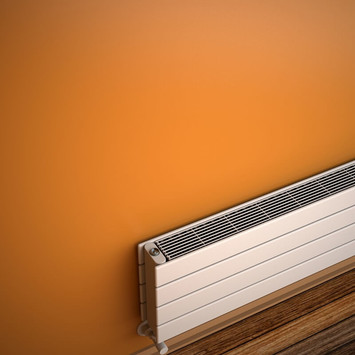

%45 DiscountAKS SeçenekleriType 22H Decorative Radiator 292x2400 White ∆t50°C=2036 Kcal/h | ∆t60°C= 2566 Kcal/h | 4 Pipes | Heats 14-40 m2
-

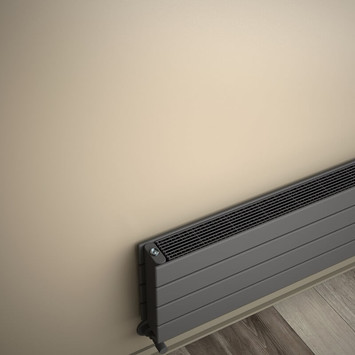

%45 DiscountAKS SeçenekleriType 22H Decorative Radiator 292x2400 Anthracite ∆t50°C=2036 Kcal/h | ∆t60°C= 2566 Kcal/h | 4 Pipes | Heats 14-40 m2
-
