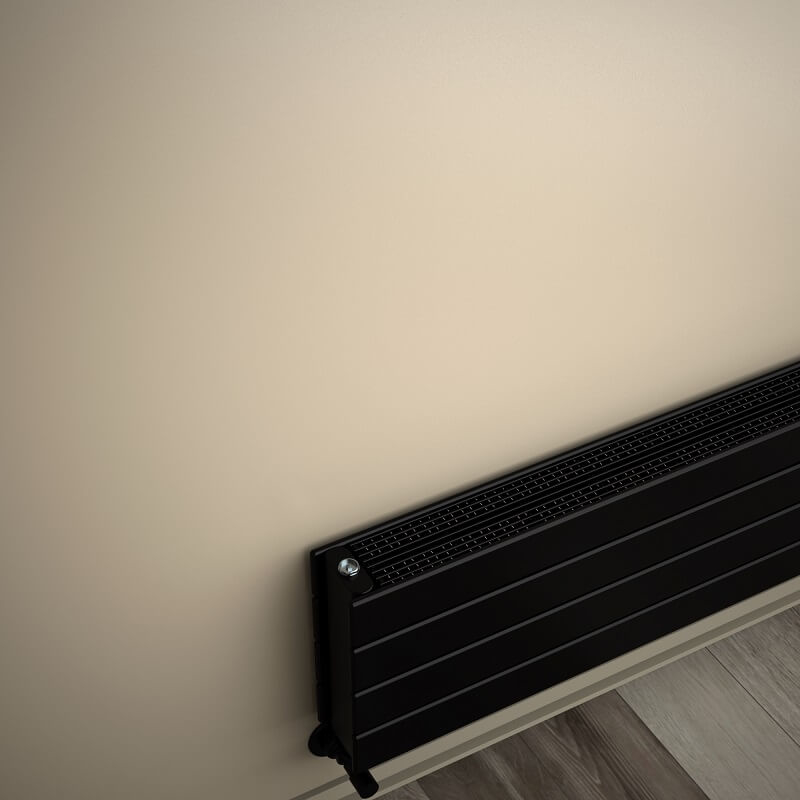

Type 22H Decorative Radiator 292x700 Matte Black

Product Code : 222H02920700B3MS
Guarantee : 10 Year
TAXES Included
Price
:
24,393.00 TL
Discounted Price
:
13,416.15 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Right 50mm Bottom Right 50mm

Bottom Left 50mm Bottom Left 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-25cm Entry Right Side-25cm Entry Right

Side-25cm Entry Left Side-25cm Entry Left

Choose Quantity
Planned Delivery
:
22.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 22H

    • Material =Steel

    • Height    =292 mm

    • Width=700 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=4 Pieces

    • Total Number of Profiles (Front + Back)=4+4 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=30x80 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=100 mm

    • Wall to Center of Inlet=85 mm

    • Wall Projection Distance=135 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=3,8 lt

    • Weight=13 kg

    • Boxed Weight    =13,92 kg

    • Box Size=35x76x13,6 cm


    TAPPING OPTIONS




    • Standard Entry=650 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=790mm

    • Cross Up-Right / Down-Left=790mm

    • Cross Up-Left / Down-Right=790mm

    • Side - Right=250mm

    • Side - Left=250mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 575 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=725Kcal/h

    • Heat Output 55/45-20° ?t=30°C=295Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=668 Watt

    • Heat Output 90/70-20°?t=60°C=842 Watt

    • Heat Output 55/45-20°?t=30°C=343 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=2280 Btu

    • Heat Output 90/70-20°?t=60°C=2873 Btu

    • Heat Output 55/45-20°?t=30°C=1168 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors

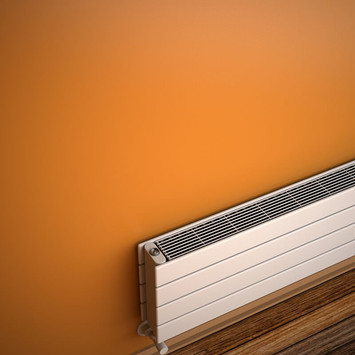

  • %45 Discount - Type 22H Decorative Radiator 292x700 White
    AKS Seçenekleri
    Type 22H Decorative Radiator 292x700 White ∆t50°C=574 Kcal/h | ∆t60°C= 724 Kcal/h | 4 Pipes | Heats 4-11 m2
    19,514.40 TL
    10,732.92 TL

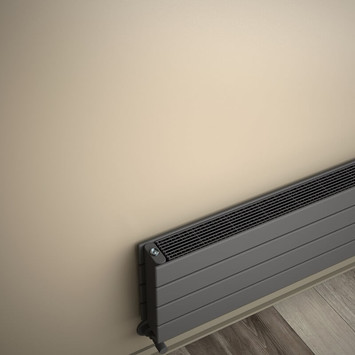

  • %45 Discount - Type 22H Decorative Radiator 292x700 Anthracite
