TECHNICAL INFORMATION

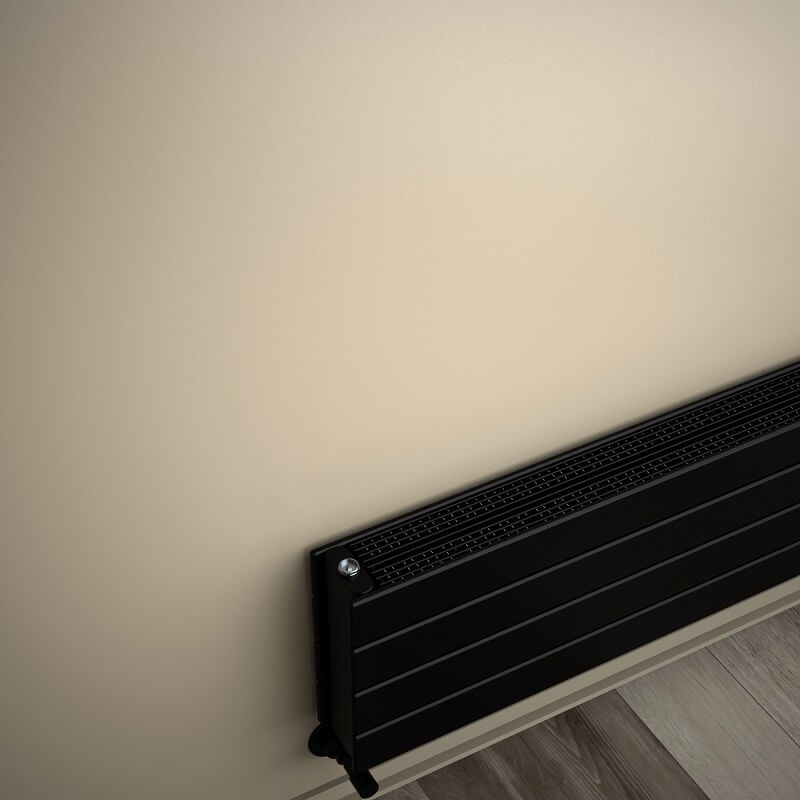

• Model = 22H
• Material =Steel
• Height=292 mm
• Width=800 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+4 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=30x80 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=100 mm
• Wall to Center of Inlet=85 mm
• Wall Projection Distance=135 mm
• Radiator Thread Dimension=1/2"
• Water Volume=4,2 lt
• Weight=14,8 kg
• Boxed Weight=15,81 kg
• Box Size=35x86x13,6 cmTAPPING OPTIONS
• Standard Entry=750 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=890mm
• Cross Up-Right / Down-Left=890mm
• Cross Up-Left / Down-Right=890mm
• Side - Right=250mm
• Side - Left=250mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 657 Kcal/h
• Heat Output 90/70-20° ?t=60°C=828Kcal/h
• Heat Output 55/45-20° ?t=30°C=337Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=763 Watt
• Heat Output 90/70-20°?t=60°C=962 Watt
• Heat Output 55/45-20°?t=30°C=391 Watt
Btu
• Heat Output 75/65-20°?t=50°C=2604 Btu
• Heat Output 90/70-20°?t=60°C=3282 Btu
• Heat Output 55/45-20°?t=30°C=1334 Btu
Warranty:10 YearsDelivery Information:21 Day
