TECHNICAL INFORMATION

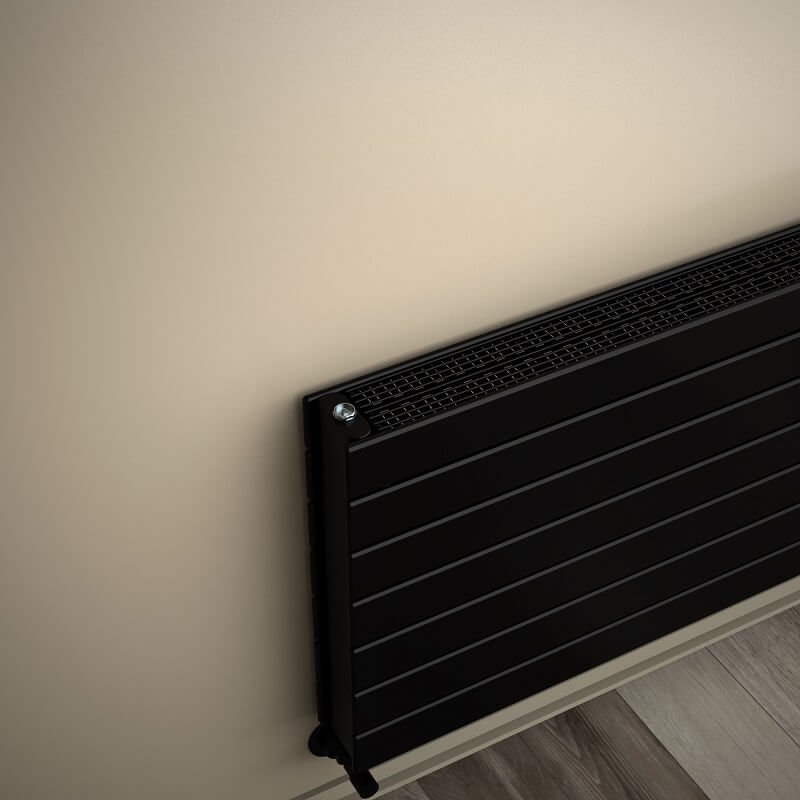

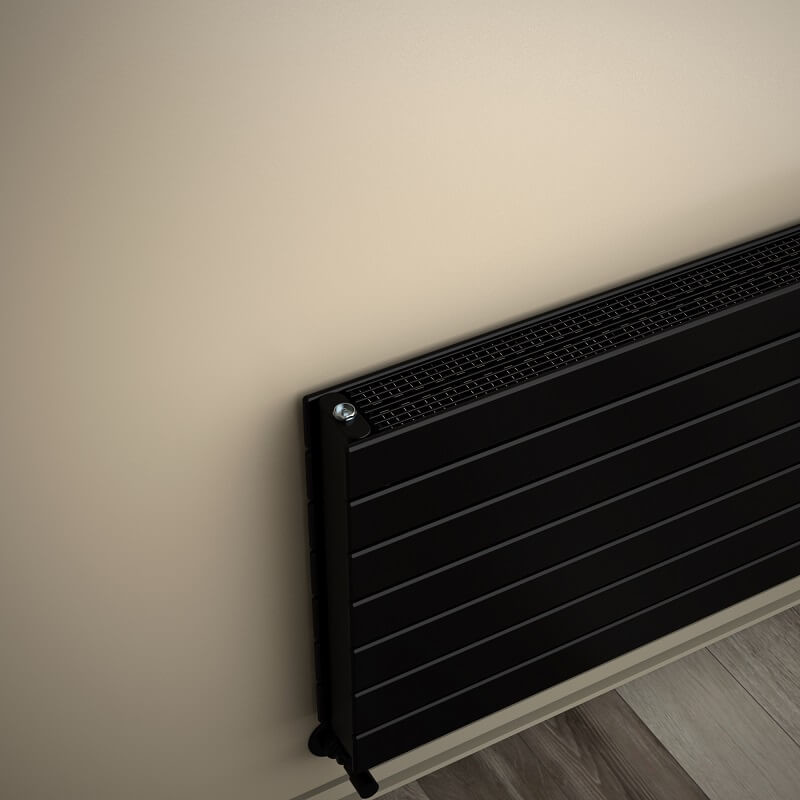

• Model = 22H
• Material =Steel
• Height=514 mm
• Width=1400 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=7 Pieces
• Total Number of Profiles (Front + Back)=7+7 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=30x80 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=100 mm
• Wall to Center of Inlet=85 mm
• Wall Projection Distance=135 mm
• Radiator Thread Dimension=1/2"
• Water Volume=11,5 lt
• Weight=44,1 kg
• Boxed Weight=46,56 kg
• Box Size=57x146x13,6 cmTAPPING OPTIONS
• Standard Entry=1350 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1490mm
• Cross Up-Right / Down-Left=1490mm
• Cross Up-Left / Down-Right=1490mm
• Side - Right=450mm
• Side - Left=450mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1826 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2301Kcal/h
• Heat Output 55/45-20° ?t=30°C=935Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2123 Watt
• Heat Output 90/70-20°?t=60°C=2675 Watt
• Heat Output 55/45-20°?t=30°C=1087 Watt
Btu
• Heat Output 75/65-20°?t=50°C=7244 Btu
• Heat Output 90/70-20°?t=60°C=9128 Btu
• Heat Output 55/45-20°?t=30°C=3709 Btu
Warranty:10 YearsDelivery Information:21 Day
