%45 Discount

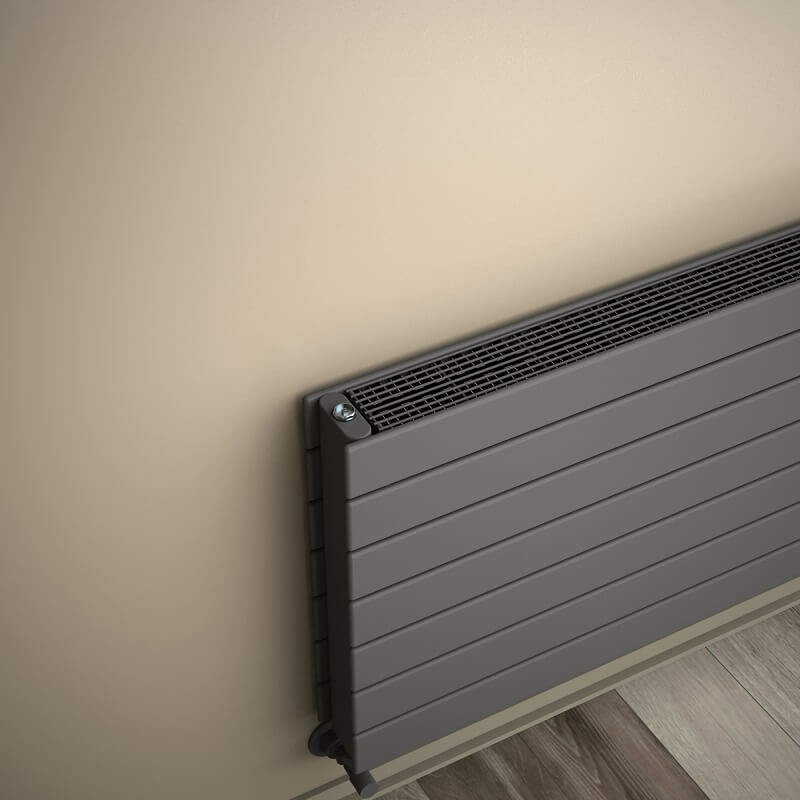

Type 22H Decorative Radiator 514x2000 Anthracite

Name: Type 22H Decorative Radiator 514x2000 Anthracite
SKU: 222H05142000B2TS
Price: 41157.60 TRY
Availability: InStock

Product Code : 222H05142000B2TS

Guarantee : 10 Year

TAXES Included

Price

74,832.00 TL

Discounted Price

41,157.60 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8245","59_0":"10990","58_0":"13735","57_0":"16480","56_0":"17740","55_0":"19000","54_0":"20260","53_0":"21376","52_0":"21712"},"variant_prices":{"60_0":34298,"59_0":35178,"58_0":35178,"57_0":35178,"56_0":35178,"55_0":35178,"54_0":35178,"53_0":35178,"52_0":35178},"variant_price_raws":{"60_0":34298,"59_0":35178,"58_0":35178,"57_0":35178,"56_0":35178,"55_0":35178,"54_0":35178,"53_0":35178,"52_0":35178},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"62360","59_0":"63960","58_0":"63960","57_0":"63960","56_0":"63960","55_0":"63960","54_0":"63960","53_0":"63960","52_0":"63960"},"variant_supplier_codes":{"60_0":"222H05142000B2TS","59_0":"222H05142000B2TM2","58_0":"222H05142000B2TM3","57_0":"222H05142000B2TM1","56_0":"222H05142000B2TY0","55_0":"222H05142000B2TC1","54_0":"222H05142000B2TC2","53_0":"222H05142000B2TR2","52_0":"222H05142000B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 22H

• Material =Steel

• Height=514 mm

• Width=2000 mm

• Color/Coating=Anthracite

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=15,7 lt

• Weight=62,3 kg

• Boxed Weight=65,69 kg

• Box Size=57x206x13,6 cm

TAPPING OPTIONS

• Standard Entry=1950 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2090mm

• Cross Up-Right / Down-Left=2090mm

• Cross Up-Left / Down-Right=2090mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2609 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3288Kcal/h

• Heat Output 55/45-20° ?t=30°C=1336Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=3033 Watt

• Heat Output 90/70-20°?t=60°C=3822 Watt

• Heat Output 55/45-20°?t=30°C=1553 Watt

Btu

• Heat Output 75/65-20°?t=50°C=10349 Btu

• Heat Output 90/70-20°?t=60°C=13040 Btu

• Heat Output 55/45-20°?t=30°C=5299 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
