TECHNICAL INFORMATION

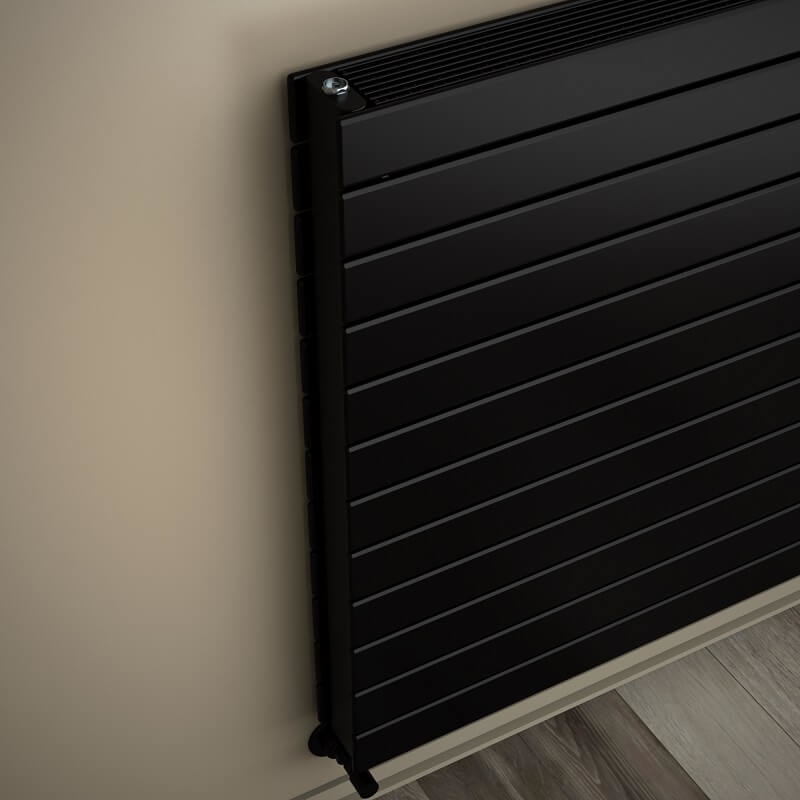

• Model = 22H
• Material =Steel
• Height=884 mm
• Width=1200 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=12 Pieces
• Total Number of Profiles (Front + Back)=12+12 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=30x80 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=100 mm
• Wall to Center of Inlet=85 mm
• Wall Projection Distance=135 mm
• Radiator Thread Dimension=1/2"
• Water Volume=17,3 lt
• Weight=65 kg
• Boxed Weight=68,49 kg
• Box Size=94x126x13,6 cmTAPPING OPTIONS
• Standard Entry=1150 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1290mm
• Cross Up-Right / Down-Left=1290mm
• Cross Up-Left / Down-Right=1290mm
• Side - Right=850mm
• Side - Left=850mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 2310 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2911Kcal/h
• Heat Output 55/45-20° ?t=30°C=1183Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2685 Watt
• Heat Output 90/70-20°?t=60°C=3384 Watt
• Heat Output 55/45-20°?t=30°C=1375 Watt
Btu
• Heat Output 75/65-20°?t=50°C=9162 Btu
• Heat Output 90/70-20°?t=60°C=11545 Btu
• Heat Output 55/45-20°?t=30°C=4691 Btu
Warranty:10 YearsDelivery Information:21 Day
