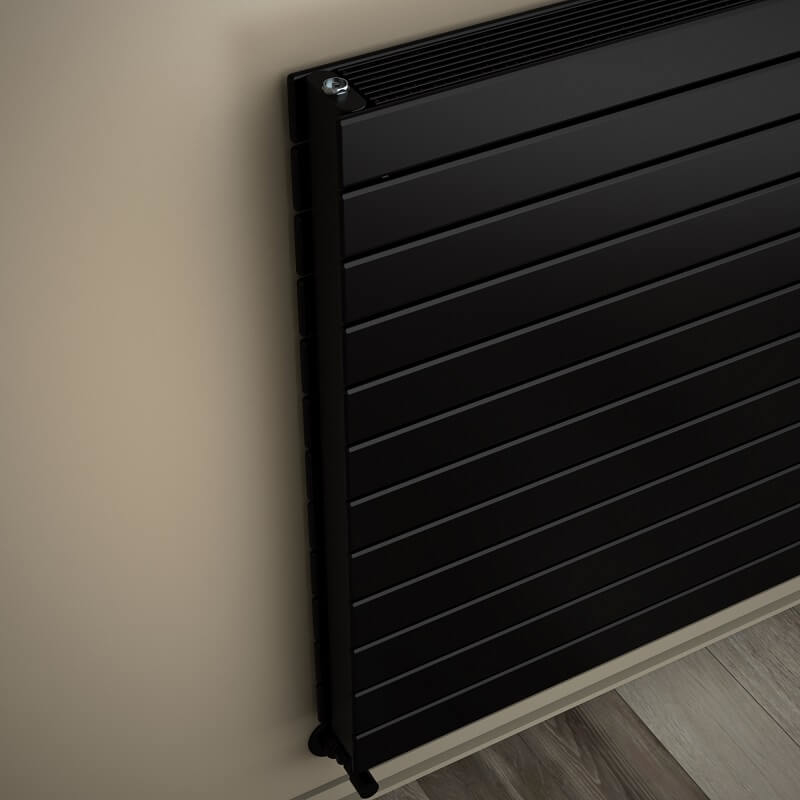

TECHNICAL INFORMATION
• Model = 22H
• Material =Steel
• Height=884 mm
• Width=1500 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=12 Pieces
• Total Number of Profiles (Front + Back)=12+12 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=30x80 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=100 mm
• Wall to Center of Inlet=85 mm
• Wall Projection Distance=135 mm
• Radiator Thread Dimension=1/2"
• Water Volume=20,9 lt
• Weight=80,7 kg
• Boxed Weight=84,98 kg
• Box Size=94x156x13,6 cmTAPPING OPTIONS
• Standard Entry=1450 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1590mm
• Cross Up-Right / Down-Left=1590mm
• Cross Up-Left / Down-Right=1590mm
• Side - Right=850mm
• Side - Left=850mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 2888 Kcal/h
• Heat Output 90/70-20° ?t=60°C=3639Kcal/h
• Heat Output 55/45-20° ?t=30°C=1479Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=3357 Watt
• Heat Output 90/70-20°?t=60°C=4230 Watt
• Heat Output 55/45-20°?t=30°C=1719 Watt
Btu
• Heat Output 75/65-20°?t=50°C=11455 Btu
• Heat Output 90/70-20°?t=60°C=14434 Btu
• Heat Output 55/45-20°?t=30°C=5865 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

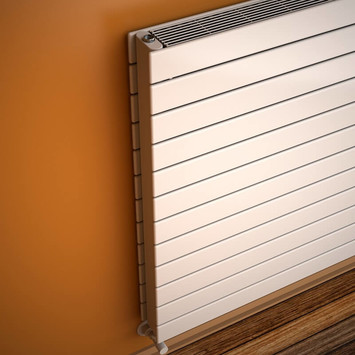

%45 DiscountAKS SeçenekleriType 22H Decorative Radiator 884x1500 White ∆t50°C=2887 Kcal/h | ∆t60°C= 3639 Kcal/h | 12 Pipes | Heats 19-56 m2
-

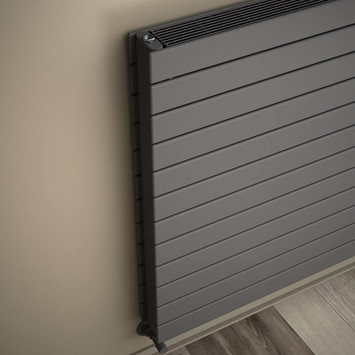

%45 DiscountAKS SeçenekleriType 22H Decorative Radiator 884x1500 Anthracite ∆t50°C=2887 Kcal/h | ∆t60°C= 3639 Kcal/h | 12 Pipes | Heats 19-56 m2
-
