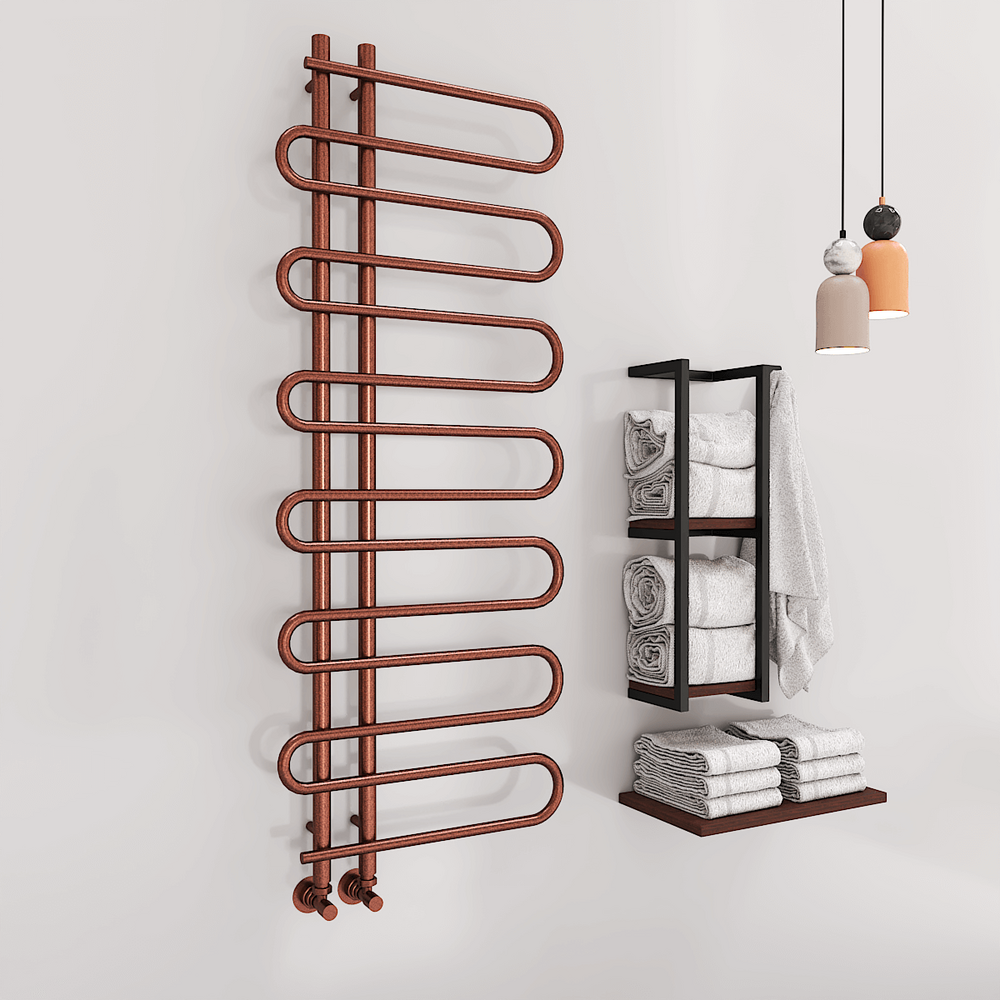

Zante Decorative Towel Warmer 600x1400 Copper Antique

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Zante

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 600 mm

• Height = 1400 mm

• Color/Coating = Bakır Eskitme

• Tapping Distance = 72 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 60 mm

• Wall Projection Distance = 95 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 5,7 lt

• Weight = 9,1 kg

• Boxed Weight = 11,4 kg

• Box Size = 62x142x6 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 254 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 321 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 131 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 295 Watt

• Heat Output 90/70-20° ?t=60°C = 372 Watt

• Heat Output 55/45-20° ?t=30°C = 152 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1007 Btu

• Heat Output 90/70-20° ?t=60°C = 1269 Btu

• Heat Output 55/45-20° ?t=30°C = 516 Btu
