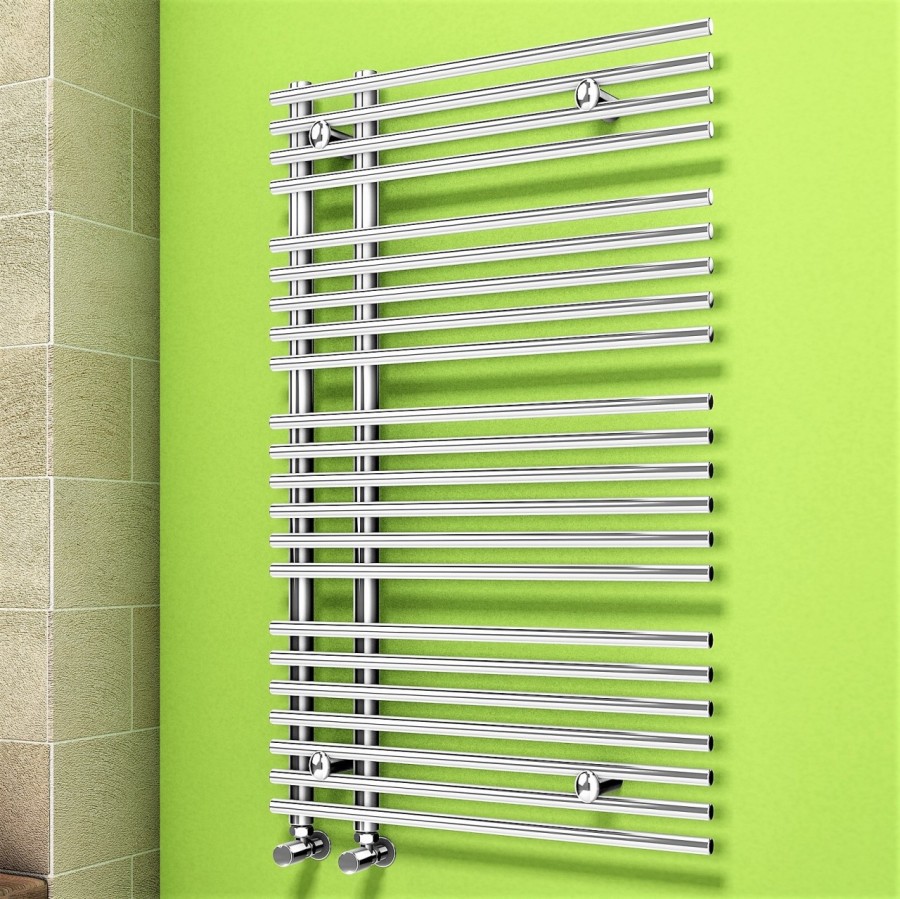

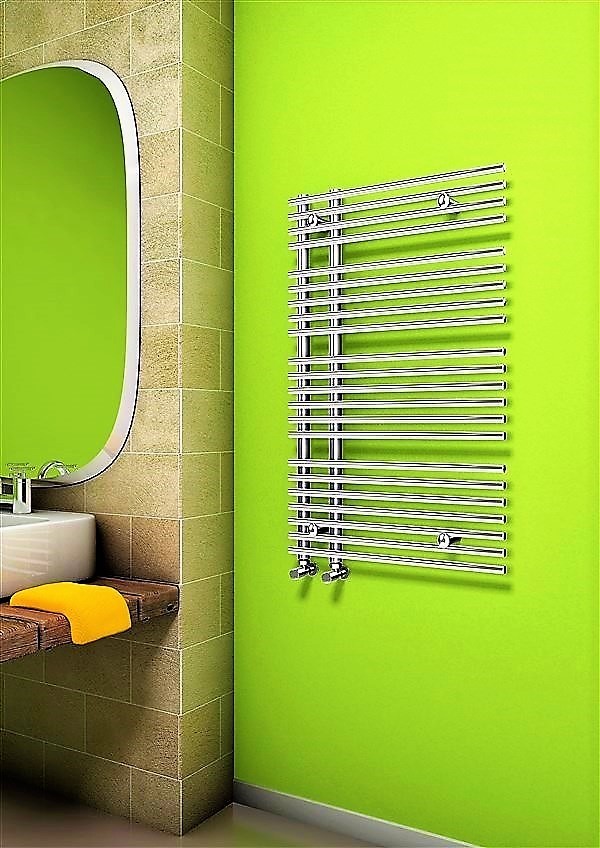

Zanzibar Decorative Towel Warmer 600x1000 Chrome

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Zanzibar

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 600 mm

• Height = 1000 mm

• Color/Coating = Krom

• Tapping Distance = 100 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 47-67 mm

• Wall Projection Distance = 82-102 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 5,3 lt

• Weight = 9,9 kg

• Boxed Weight = 11,5 kg

• Box Size = 62x102x7 cm

• Wall Mount Set Type = Plastik

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 307 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 387 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 158 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 356 Watt

• Heat Output 90/70-20° ?t=60°C = 449 Watt

• Heat Output 55/45-20° ?t=30°C = 183 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1215 Btu

• Heat Output 90/70-20° ?t=60°C = 1531 Btu

• Heat Output 55/45-20° ?t=30°C = 623 Btu
