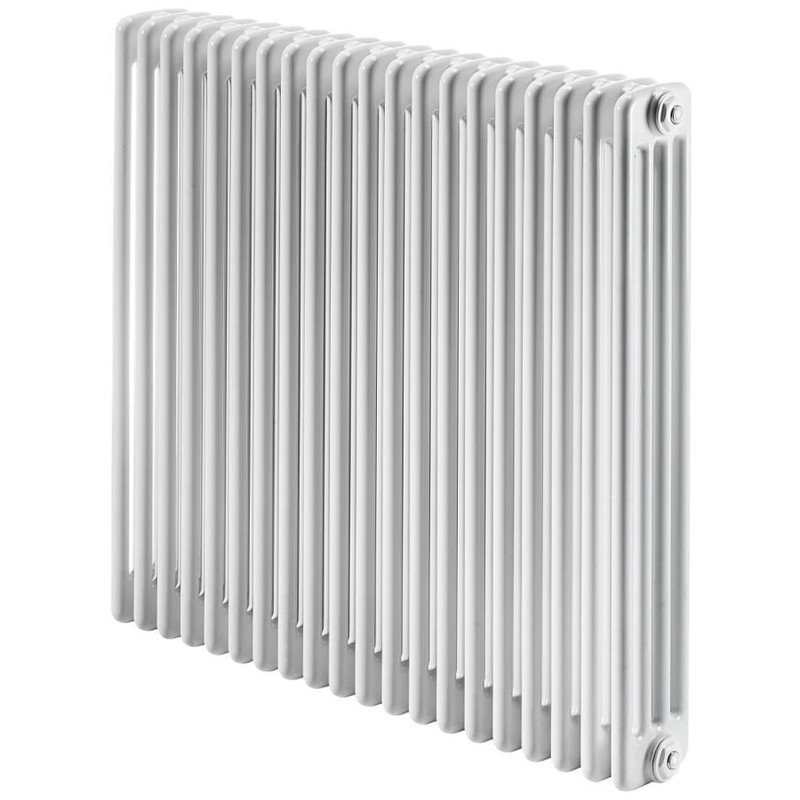

DL 4 Column Radiator 1000x2326 Special Color Category 1

Product Code : 2D4C10002326X1XS
Guarantee : 10 Year
TAXES Included
Price
:
295,815.24 TL
Discounted Price
:
162,698.38 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard / Cross Standard / Cross

Bottom Right - Bottom Left Bottom Right - Bottom Left

Lower Middle 50mm Lower Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
06.04.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)

  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 4K

    • Material  = Steel

    • Height = 1000 mm

    • Width   = 2326 mm

    • Color = Special Color Category 1

    • Number of Columns = 4

    • Number of Sections  = 50 Pieces

    • Legs Needed If Free Standing = 4 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 108 mm

    • Wall Projection Distance  = 182 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 148 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 95 lt

    • Radiator Weight    = 145 kg

    TAPPING OPTIONS



    • Standard Entry1    = 930 mm

    • Standard Entry Cross = 2416 mm

    • Sides / Bottom Right-Left  = 2416 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 5676 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 7152 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 2907 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 6600 Watt

    • Heat Output 90/70-20° ∆t=60°C = 8316 Watt

    • Heat Output 55/45-20° ∆t=30°C = 3380 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 22520 Btu

    • Heat Output 90/70-20° ∆t=60°C = 28376 Btu

    • Heat Output 55/45-20° ∆t=30°C = 11531 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day

  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.



Other Colors
  • %45 Discount - DL 4 Column Radiator 1000x2326 White
    AKS Seçenekleri
    DL 4 Column Radiator 1000x2326 White ∆t50°C=5655 Kcal/h | ∆t60°C= 7154 Kcal/h | 50 Pipes | Heats 37-109 m2
    219,122.40 TL
    120,517.32 TL
  • %45 Discount - DL 4 Column Radiator 1000x2326 Anthracite
    AKS Seçenekleri
    DL 4 Column Radiator 1000x2326 Anthracite ∆t50°C=5655 Kcal/h | ∆t60°C= 7154 Kcal/h | 50 Pipes | Heats 37-109 m2
    295,815.24 TL
    162,698.38 TL
  • %45 Discount - DL 4 Column Radiator 1000x2326 Matt Black
    AKS Seçenekleri
    DL 4 Column Radiator 1000x2326 Matt Black ∆t50°C=5655 Kcal/h | ∆t60°C= 7154 Kcal/h | 50 Pipes | Heats 37-109 m2
    295,815.24 TL
    162,698.38 TL
  • %45 Discount - DL 4 Column Radiator 1000x2326 Special Color Category 1
    AKS Seçenekleri
    DL 4 Column Radiator 1000x2326 Special Color Category 1 ∆t50°C=5655 Kcal/h | ∆t60°C= 7154 Kcal/h | 50 Pipes | Heats 37-109 m2
    295,815.24 TL
    162,698.38 TL
  • %45 Discount - DL 4 Column Radiator 1000x2326 Special Color Category 2
    AKS Seçenekleri
    DL 4 Column Radiator 1000x2326 Special Color Category 2 ∆t50°C=5655 Kcal/h | ∆t60°C= 7154 Kcal/h | 50 Pipes | Heats 37-109 m2
    317,727.48 TL
    174,750.11 TL
