%45 Discount

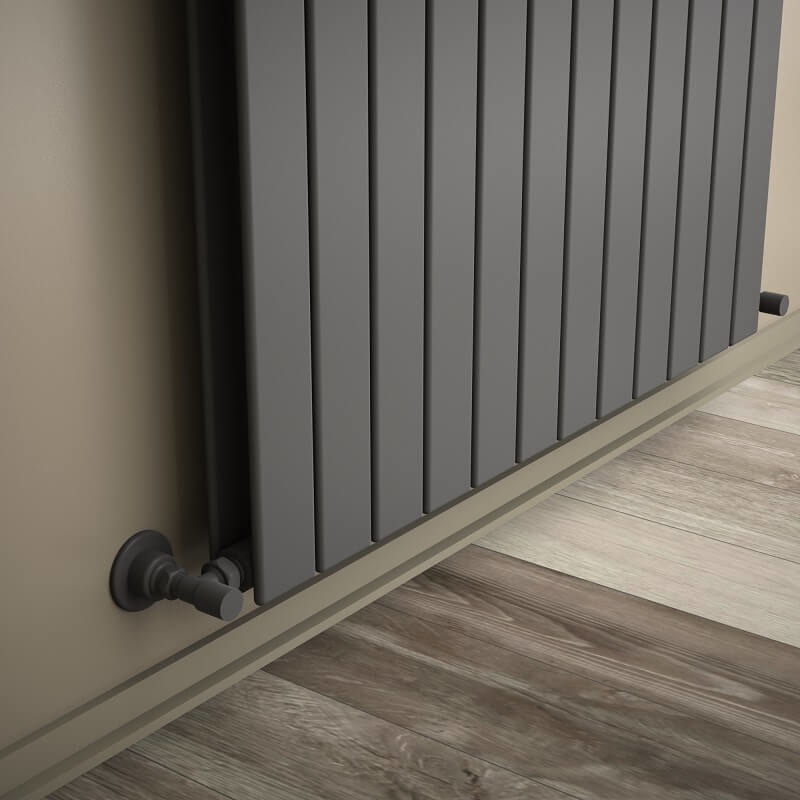

Type 20V Decorative Radiator 2200x884 Anthracite

Name: Type 20V Decorative Radiator 2200x884 Anthracite
SKU: 220V22000884B2TS
Price: 56166.00 TRY
Availability: InStock

Product Code : 220V22000884B2TS

Guarantee : 10 Year

TAXES Included

Price

102,120.00 TL

Discounted Price

56,166.00 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

01.02.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=2200 mm

• Width=884 mm

• Color/Coating=Anthracite

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=27,9 lt

• Weight=84,9 kg

• Boxed Weight=91,04 kg

• Box Size=93x225x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =974 mm

• Standard Entry2 =2150 mm

• Standard Entry Cross =974 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2511 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3164Kcal/h

• Heat Output 55/45-20° ?t=30°C=1286 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2919 Watt

• Heat Output 90/70-20°?t=60°C=3678 Watt

• Heat Output 55/45-20°?t=30°C=1495 Watt

Btu

• Heat Output 75/65-20°?t=50°C=9960 Btu

• Heat Output 90/70-20°?t=60°C=12550 Btu

• Heat Output 55/45-20°?t=30°C=5100 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
