%45 Discount
Detay Banner

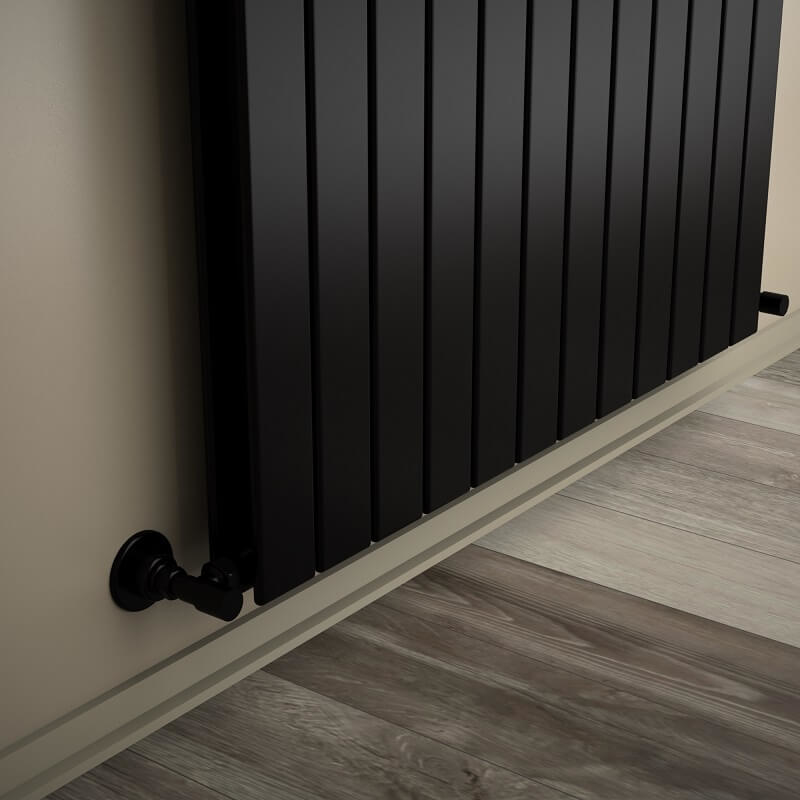

Type 20V Decorative Radiator 2200x884 Matte Black

Product Code : 220V22000884B3MS
Guarantee : 10 Year
TAXES Included
Price
:
102,120.00 TL
Discounted Price
:
56,166.00 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
20.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =2200 mm

    • Width=884 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=12 Pieces

    • Total Number of Profiles (Front + Back)=12+12 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=27,9 lt

    • Weight=84,9 kg

    • Boxed Weight    =91,04 kg

    • Box Size=93x225x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =974 mm

    • Standard Entry2 =2150 mm

    • Standard Entry Cross =974 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 2511 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=3164Kcal/h

    • Heat Output 55/45-20° ?t=30°C=1286 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=2919 Watt

    • Heat Output 90/70-20°?t=60°C=3678 Watt

    • Heat Output 55/45-20°?t=30°C=1495 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=9960 Btu

    • Heat Output 90/70-20°?t=60°C=12550 Btu

    • Heat Output 55/45-20°?t=30°C=5100 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , dikey radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , siyah radyatör , mat siyah radyatör
Other Colors
  • %45 Discount - Type 20V Decorative Radiator 2200x884 White
    AKS Seçenekleri
    Type 20V Decorative Radiator 2200x884 White ∆t50°C=2510 Kcal/h | ∆t60°C= 3164 Kcal/h | 12 Pipes | Heats 17-49 m2
    81,696.00 TL
    44,932.80 TL
  • %45 Discount - Type 20V Decorative Radiator 2200x884 Anthracite
    AKS Seçenekleri
    Type 20V Decorative Radiator 2200x884 Anthracite ∆t50°C=2510 Kcal/h | ∆t60°C= 3164 Kcal/h | 12 Pipes | Heats 17-49 m2
    102,120.00 TL
    56,166.00 TL
  • %45 Discount - Type 20V Decorative Radiator 2200x884 Matte Black
    AKS Seçenekleri
    Type 20V Decorative Radiator 2200x884 Matte Black ∆t50°C=2510 Kcal/h | ∆t60°C= 3164 Kcal/h | 12 Pipes | Heats 17-49 m2
    102,120.00 TL
    56,166.00 TL
  • %45 Discount - Type 20V Decorative Radiator 2200x884 Wood Effect
    AKS Seçenekleri
    Type 20V Decorative Radiator 2200x884 Wood Effect ∆t50°C=2510 Kcal/h | ∆t60°C= 3164 Kcal/h | 12 Pipes | Heats 17-49 m2
    105,650.40 TL
    58,107.72 TL
Accessories
