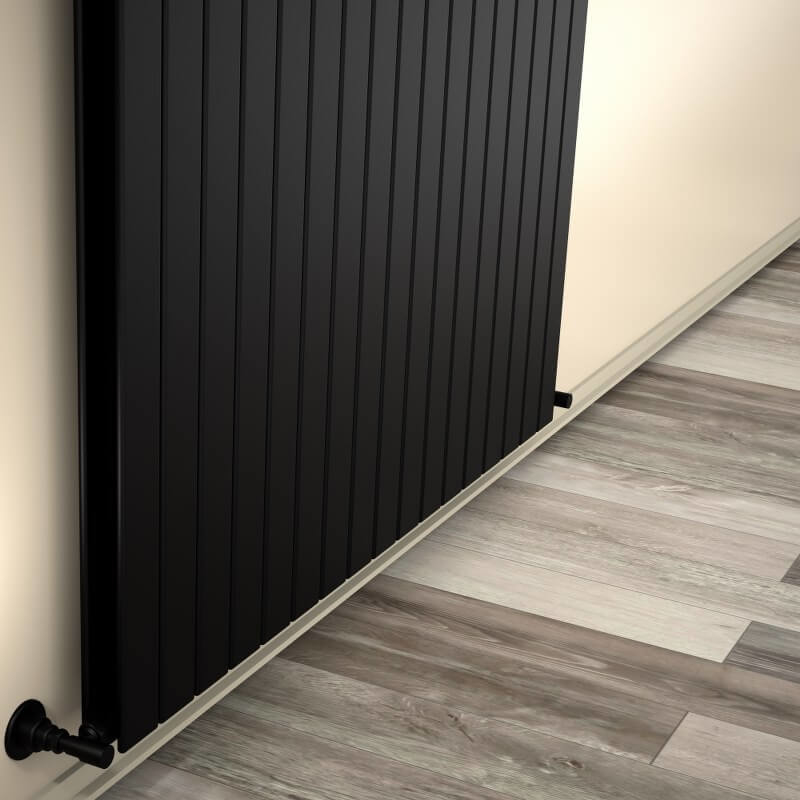

Type 20V Decorative Radiator 400x1254 Matte Black

Product Code : 220V04001254B3MS
Guarantee : 10 Year
TAXES Included
Price
:
34,108.50 TL
Discounted Price
:
18,759.68 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
20.11.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =400 mm

    • Width=1254 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=17 Pieces

    • Total Number of Profiles (Front + Back)=17+17 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=9,2 lt

    • Weight=24,7 kg

    • Boxed Weight    =26,51 kg

    • Box Size=130x45x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1344 mm

    • Standard Entry2 =350 mm

    • Standard Entry Cross =1344 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 789 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=995Kcal/h

    • Heat Output 55/45-20° ?t=30°C=404 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=917 Watt

    • Heat Output 90/70-20°?t=60°C=1156 Watt

    • Heat Output 55/45-20°?t=30°C=470 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=3129 Btu

    • Heat Output 90/70-20°?t=60°C=3943 Btu

    • Heat Output 55/45-20°?t=30°C=1603 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors
  • %45 Discount - Type 20V Decorative Radiator 400x1254 White
    AKS Seçenekleri
    Type 20V Decorative Radiator 400x1254 White ∆t50°C=789 Kcal/h | ∆t60°C= 995 Kcal/h | 17 Pipes | Heats 6-16 m2
    27,286.80 TL
    15,007.74 TL
  • %45 Discount - Type 20V Decorative Radiator 400x1254 Anthracite
    AKS Seçenekleri
    Type 20V Decorative Radiator 400x1254 Anthracite ∆t50°C=789 Kcal/h | ∆t60°C= 995 Kcal/h | 17 Pipes | Heats 6-16 m2
    34,108.50 TL
    18,759.68 TL
  • %45 Discount - Type 20V Decorative Radiator 400x1254 Matte Black
    AKS Seçenekleri
    Type 20V Decorative Radiator 400x1254 Matte Black ∆t50°C=789 Kcal/h | ∆t60°C= 995 Kcal/h | 17 Pipes | Heats 6-16 m2
    34,108.50 TL
    18,759.68 TL
  • %45 Discount - Type 20V Decorative Radiator 400x1254 Wood Effect
    AKS Seçenekleri
    Type 20V Decorative Radiator 400x1254 Wood Effect ∆t50°C=789 Kcal/h | ∆t60°C= 995 Kcal/h | 17 Pipes | Heats 6-16 m2
    37,502.40 TL
    20,626.32 TL
