%45 Discount

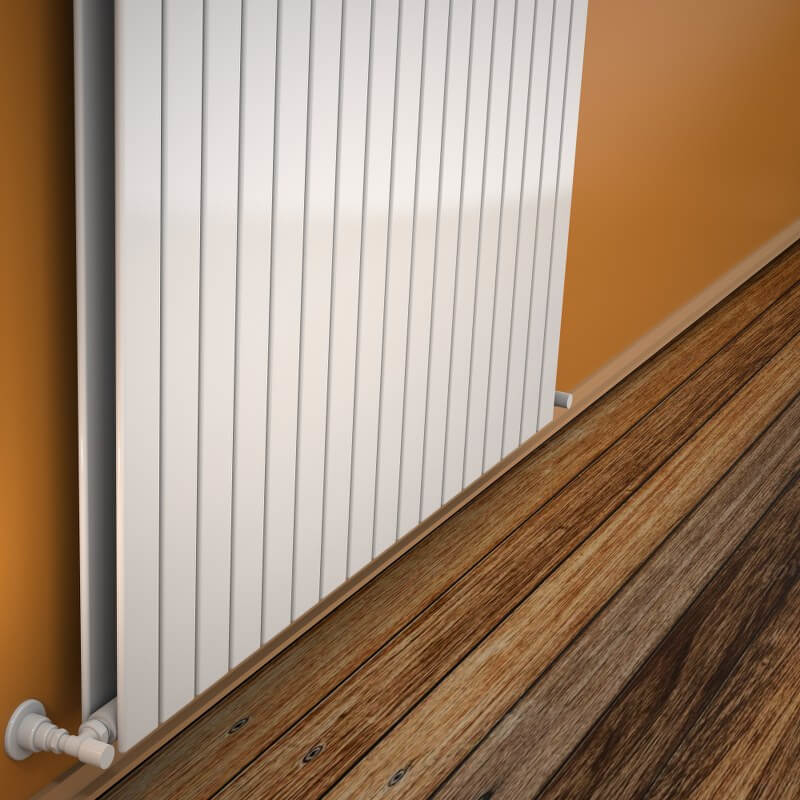

Type 20V Decorative Radiator 400x1254 White

Name: Type 20V Decorative Radiator 400x1254 White
SKU: 220V04001254B1PS
Price: 15007.74 TRY
Availability: InStock

Product Code : 220V04001254B1PS

Guarantee : 10 Year

TAXES Included

Price

27,286.80 TL

Discounted Price

15,007.74 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=400 mm

• Width=1254 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=17 Pieces

• Total Number of Profiles (Front + Back)=17+17 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=9,2 lt

• Weight=24,7 kg

• Boxed Weight=26,51 kg

• Box Size=130x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1344 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =1344 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 789 Kcal/h

• Heat Output 90/70-20° ?t=60°C=995Kcal/h

• Heat Output 55/45-20° ?t=30°C=404 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=917 Watt

• Heat Output 90/70-20°?t=60°C=1156 Watt

• Heat Output 55/45-20°?t=30°C=470 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3129 Btu

• Heat Output 90/70-20°?t=60°C=3943 Btu

• Heat Output 55/45-20°?t=30°C=1603 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7120","36_0":"15355","34_0":"12610","35_0":"9865"},"variant_prices":{"37_0":12506.45,"36_0":13386.45,"34_0":13386.45,"35_0":13386.45},"variant_price_raws":{"37_0":12506.45,"36_0":13386.45,"34_0":13386.45,"35_0":13386.45},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"22739","36_0":"24339","34_0":"24339","35_0":"24339"},"variant_supplier_codes":{"37_0":"220V04001254B1PS","36_0":"220V04001254B1PM1","34_0":"220V04001254B1PM3","35_0":"220V04001254B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

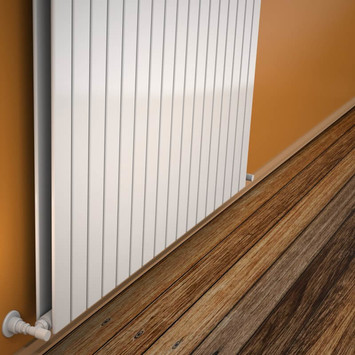

Type 20V Decorative Radiator 400x1254 White ∆t50°C=789 Kcal/h | ∆t60°C= 995 Kcal/h | 17 Pipes | Heats 6-16 m2

27,286.80 TL

15,007.74 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7121","36_0":"15356","34_0":"12611","35_0":"9866"},"variant_prices":{"37_0":15633.0625,"36_0":16513.0625,"34_0":16513.0625,"35_0":16513.0625},"variant_price_raws":{"37_0":15633.0625,"36_0":16513.0625,"34_0":16513.0625,"35_0":16513.0625},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"28423.75","36_0":"30023.75","34_0":"30023.75","35_0":"30023.75"},"variant_supplier_codes":{"37_0":"220V04001254B2TS","36_0":"220V04001254B2TM1","34_0":"220V04001254B2TM3","35_0":"220V04001254B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

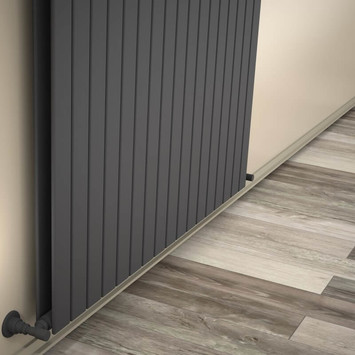

Type 20V Decorative Radiator 400x1254 Anthracite ∆t50°C=789 Kcal/h | ∆t60°C= 995 Kcal/h | 17 Pipes | Heats 6-16 m2

34,108.50 TL

18,759.68 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7122","36_0":"15357","34_0":"12612","35_0":"9867"},"variant_prices":{"37_0":15633.0625,"36_0":16513.0625,"34_0":16513.0625,"35_0":16513.0625},"variant_price_raws":{"37_0":15633.0625,"36_0":16513.0625,"34_0":16513.0625,"35_0":16513.0625},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"28423.75","36_0":"30023.75","34_0":"30023.75","35_0":"30023.75"},"variant_supplier_codes":{"37_0":"220V04001254B3MS","36_0":"220V04001254B3MM1","34_0":"220V04001254B3MM3","35_0":"220V04001254B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 400x1254 Matte Black ∆t50°C=789 Kcal/h | ∆t60°C= 995 Kcal/h | 17 Pipes | Heats 6-16 m2

34,108.50 TL

18,759.68 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7123","36_0":"15358","34_0":"12613","35_0":"9868"},"variant_prices":{"37_0":17188.6,"36_0":18068.6,"34_0":18068.6,"35_0":18068.6},"variant_price_raws":{"37_0":17188.6,"36_0":18068.6,"34_0":18068.6,"35_0":18068.6},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"31252","36_0":"32852","34_0":"32852","35_0":"32852"},"variant_supplier_codes":{"37_0":"220V04001254K6FS","36_0":"220V04001254K6FM1","34_0":"220V04001254K6FM3","35_0":"220V04001254K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 400x1254 Wood Effect ∆t50°C=789 Kcal/h | ∆t60°C= 995 Kcal/h | 17 Pipes | Heats 6-16 m2

37,502.40 TL

20,626.32 TL
