TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=600 mm
• Width=2068 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=28 Pieces
• Total Number of Profiles (Front + Back)=28+28 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=20,6 lt
• Weight=58,1 kg
• Boxed Weight=62,13 kg
• Box Size=211x65x9,6 cmTAPPING OPTIONS
• Standard Entry1 =2158 mm
• Standard Entry2 =550 mm
• Standard Entry Cross =2158 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1901 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2396Kcal/h
• Heat Output 55/45-20° ?t=30°C=974 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2210 Watt
• Heat Output 90/70-20°?t=60°C=2785 Watt
• Heat Output 55/45-20°?t=30°C=1132 Watt
Btu
• Heat Output 75/65-20°?t=50°C=7541 Btu
• Heat Output 90/70-20°?t=60°C=9502 Btu
• Heat Output 55/45-20°?t=30°C=3861 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2068 White ∆t50°C=1901 Kcal/h | ∆t60°C= 2396 Kcal/h | 28 Pipes | Heats 13-37 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2068 Anthracite ∆t50°C=1901 Kcal/h | ∆t60°C= 2396 Kcal/h | 28 Pipes | Heats 13-37 m2
-

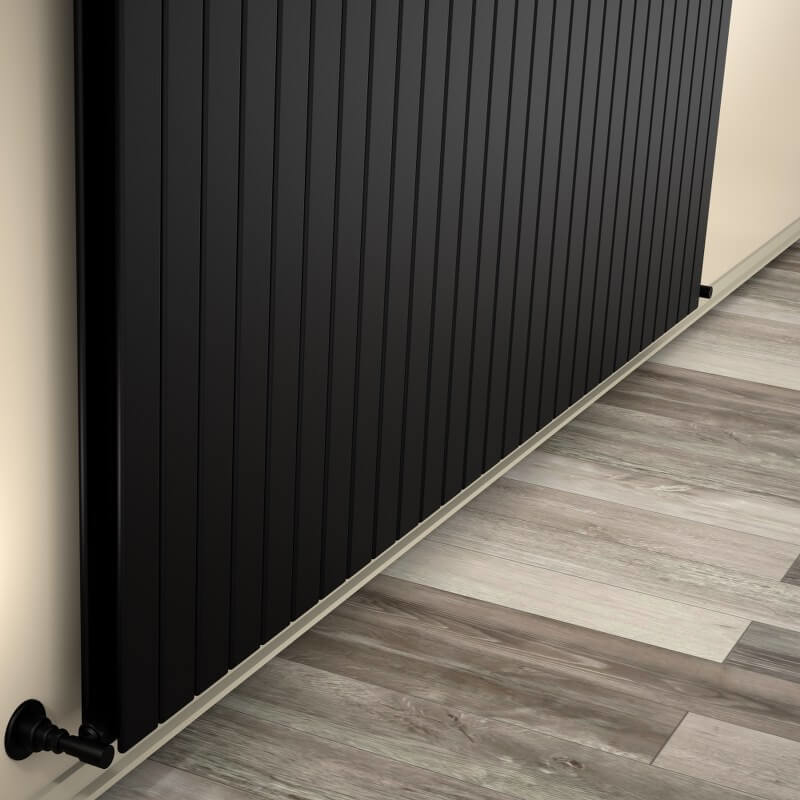

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2068 Matte Black ∆t50°C=1901 Kcal/h | ∆t60°C= 2396 Kcal/h | 28 Pipes | Heats 13-37 m2
-
