%45 Discount

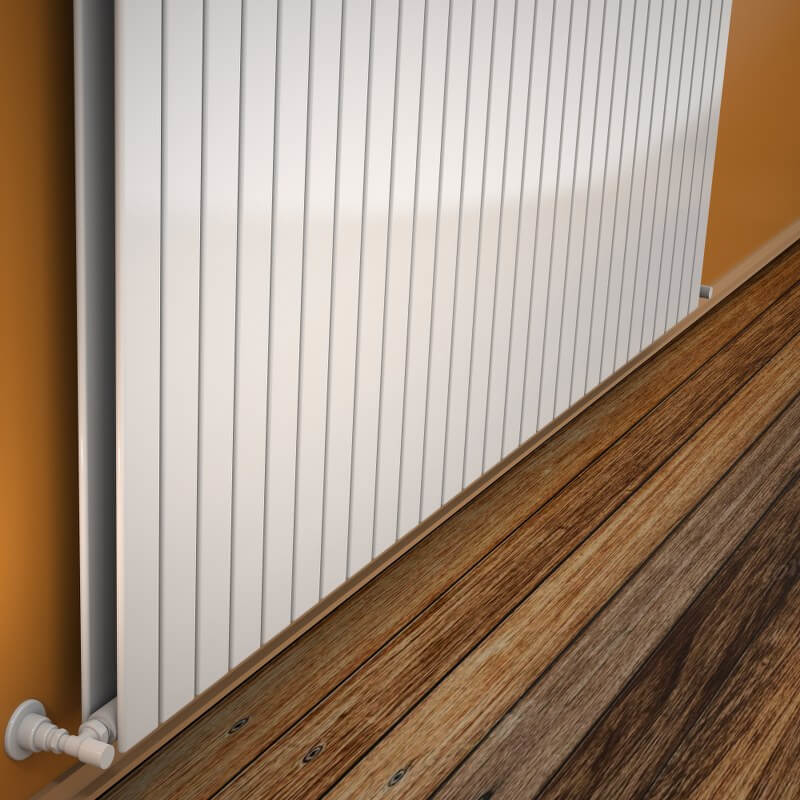

Type 20V Decorative Radiator 600x2068 White

Name: Type 20V Decorative Radiator 600x2068 White
SKU: 220V06002068B1PS
Price: 31744.02 TRY
Availability: InStock

Product Code : 220V06002068B1PS

Guarantee : 10 Year

TAXES Included

Price

57,716.40 TL

Discounted Price

31,744.02 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

20.11.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=600 mm

• Width=2068 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=28 Pieces

• Total Number of Profiles (Front + Back)=28+28 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=20,6 lt

• Weight=58,1 kg

• Boxed Weight=62,13 kg

• Box Size=211x65x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2158 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =2158 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1901 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2396Kcal/h

• Heat Output 55/45-20° ?t=30°C=974 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2210 Watt

• Heat Output 90/70-20°?t=60°C=2785 Watt

• Heat Output 55/45-20°?t=30°C=1132 Watt

Btu

• Heat Output 75/65-20°?t=50°C=7541 Btu

• Heat Output 90/70-20°?t=60°C=9502 Btu

• Heat Output 55/45-20°?t=30°C=3861 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7411","36_0":"15646","34_0":"12901","35_0":"10156"},"variant_prices":{"37_0":26453.35,"36_0":27333.35,"34_0":27333.35,"35_0":27333.35},"variant_price_raws":{"37_0":26453.35,"36_0":27333.35,"34_0":27333.35,"35_0":27333.35},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"48097","36_0":"49697","34_0":"49697","35_0":"49697"},"variant_supplier_codes":{"37_0":"220V06002068B1PS","36_0":"220V06002068B1PM1","34_0":"220V06002068B1PM3","35_0":"220V06002068B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 600x2068 White ∆t50°C=1901 Kcal/h | ∆t60°C= 2396 Kcal/h | 28 Pipes | Heats 13-37 m2

57,716.40 TL

31,744.02 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7412","36_0":"15647","34_0":"12902","35_0":"10157"},"variant_prices":{"37_0":33066.6875,"36_0":33946.6875,"34_0":33946.6875,"35_0":33946.6875},"variant_price_raws":{"37_0":33066.6875,"36_0":33946.6875,"34_0":33946.6875,"35_0":33946.6875},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"60121.25","36_0":"61721.25","34_0":"61721.25","35_0":"61721.25"},"variant_supplier_codes":{"37_0":"220V06002068B2TS","36_0":"220V06002068B2TM1","34_0":"220V06002068B2TM3","35_0":"220V06002068B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"98","36_0":"100","34_0":"100","35_0":"100"}}

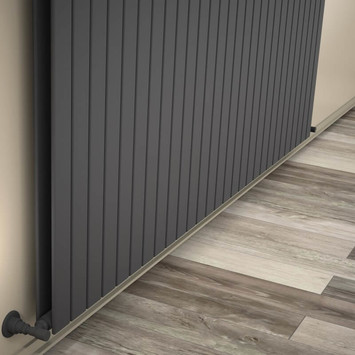

Type 20V Decorative Radiator 600x2068 Anthracite ∆t50°C=1901 Kcal/h | ∆t60°C= 2396 Kcal/h | 28 Pipes | Heats 13-37 m2
