TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=600 mm
• Width=2586 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=35 Pieces
• Total Number of Profiles (Front + Back)=35+35 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=25,8 lt
• Weight=72,6 kg
• Boxed Weight=77,56 kg
• Box Size=263x65x9,6 cmTAPPING OPTIONS
• Standard Entry1 =2676 mm
• Standard Entry2 =550 mm
• Standard Entry Cross =2676 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 2376 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2994Kcal/h
• Heat Output 55/45-20° ?t=30°C=1217 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2762 Watt
• Heat Output 90/70-20°?t=60°C=3481 Watt
• Heat Output 55/45-20°?t=30°C=1415 Watt
Btu
• Heat Output 75/65-20°?t=50°C=9424 Btu
• Heat Output 90/70-20°?t=60°C=11875 Btu
• Heat Output 55/45-20°?t=30°C=4826 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2586 White ∆t50°C=2375 Kcal/h | ∆t60°C= 2994 Kcal/h | 35 Pipes | Heats 16-46 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2586 Anthracite ∆t50°C=2375 Kcal/h | ∆t60°C= 2994 Kcal/h | 35 Pipes | Heats 16-46 m2
-

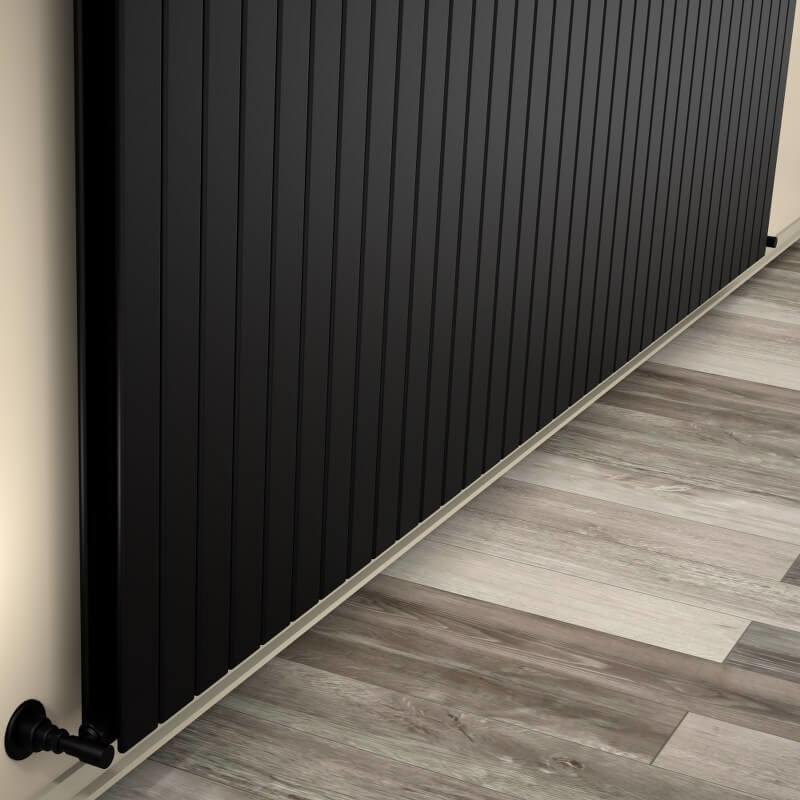

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2586 Matte Black ∆t50°C=2375 Kcal/h | ∆t60°C= 2994 Kcal/h | 35 Pipes | Heats 16-46 m2
-
