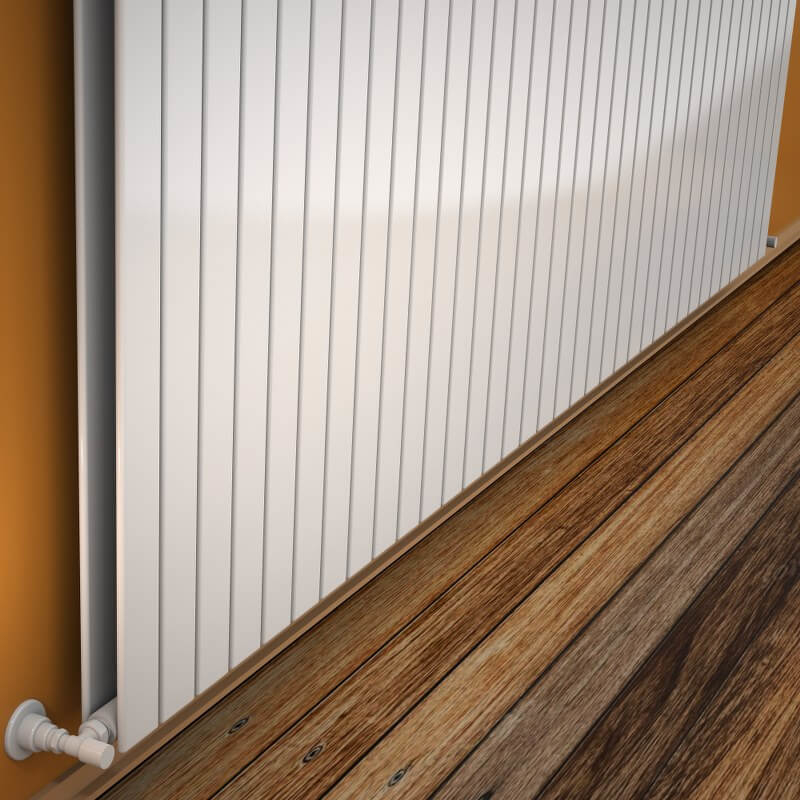

Type 20V Decorative Radiator 600x2586 White

Name: Type 20V Decorative Radiator 600x2586 White
SKU: 220V06002586B1PS
Price: 39066.06 TRY
Availability: InStock

Product Code : 220V06002586B1PS

Guarantee : 10 Year

TAXES Included

Price

71,029.20 TL

Discounted Price

39,066.06 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=600 mm

• Width=2586 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=35 Pieces

• Total Number of Profiles (Front + Back)=35+35 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=25,8 lt

• Weight=72,6 kg

• Boxed Weight=77,56 kg

• Box Size=263x65x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2676 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =2676 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2376 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2994Kcal/h

• Heat Output 55/45-20° ?t=30°C=1217 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2762 Watt

• Heat Output 90/70-20°?t=60°C=3481 Watt

• Heat Output 55/45-20°?t=30°C=1415 Watt

Btu

• Heat Output 75/65-20°?t=50°C=9424 Btu

• Heat Output 90/70-20°?t=60°C=11875 Btu

• Heat Output 55/45-20°?t=30°C=4826 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
